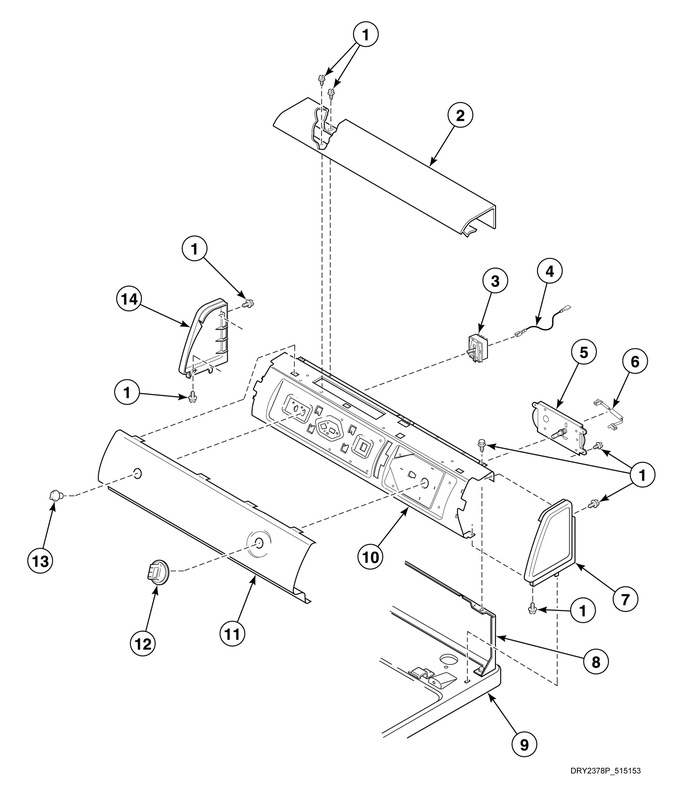

Control Panel And Controls - Rear Control (drawing 1 Of 2)


Cylinder


Front Bulkhead, Air Duct And Felt Seal


Heater Duct And Element Assembly (electric Models)


Loading Door - Without Window


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Rear Control Models


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D501086		Screw			Immediately	$ 6.95
2	D505808W		Top Cover				$ 91.43
3	D513505		Fabric Selector Switch			Immediately	$ 45.66
4	COMM PART		Wire Assembly (comment: Fabric Selector Switch To Timer)   (Replaces: D510540)		Appelez-nous	-
5	D519030		Timer And Harness Kit   (Replaces: D505797P)			Immediately	$ 314.20
6	D511277		Resistor Assembly				$ 13.57
7	D504008WP		End Panel (comment: Right)				$ 19.23
8	D510099		Hood Back Panel				$ 45.40
9	D510029WP		Top Panel Kit			Immediately	$ 443.54
10	D503901		Control Support Panel		Appelez-nous	-
11	D516066W		Graphic Panel				$ 104.30
12	803168P		Knob Assembly			Immediately	$ 11.03
13	803119P		Control Knob Assembly			Immediately	$ 12.79
14	D504009WP		End Panel (comment: Left)			Immediately	$ 22.20
