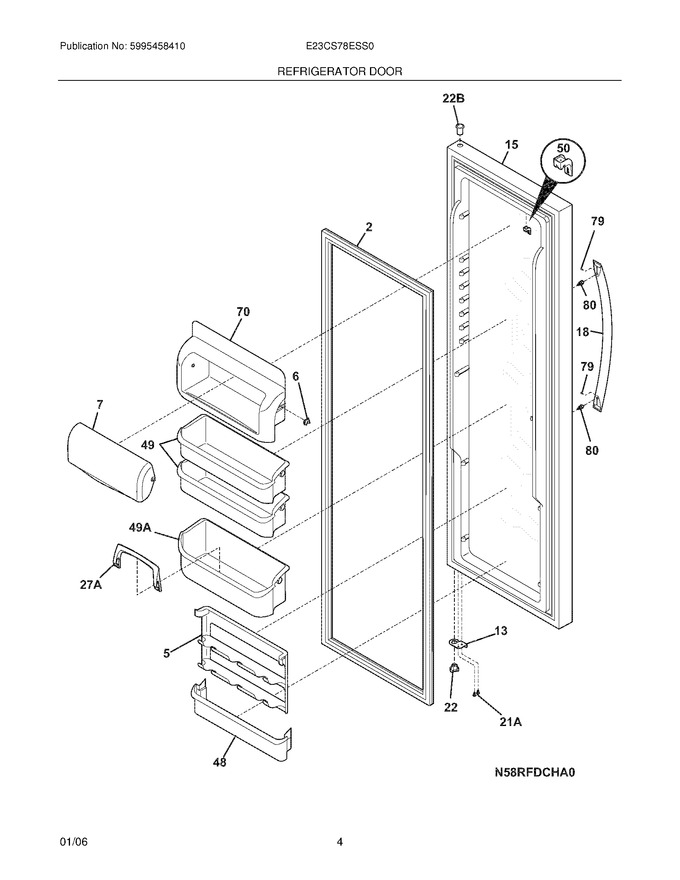

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	240581905		Door Stop,black ,ref				$ 60.25
15	240345242		Door-refr,stainless Steel ,complete Assy		Appelez-nous	-
18	241531401		Handle-door,stainless Steel ,with Set Screw				$ 330.10
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
48	241511705		Bin-door,ref		Appelez-nous	-
49	241505301		Bin-door,gallon   (Replaces: 241505305)			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	241531501		Screw-shoulder,no.10 Ab ,handle Mounting		Appelez-nous	-
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
27A	240396102		Retainer,tall Bottle				$ 19.13
49A	241505501		Bin-door,gallon   (Replaces: 241505505)			Immediately	$ 99.03
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
