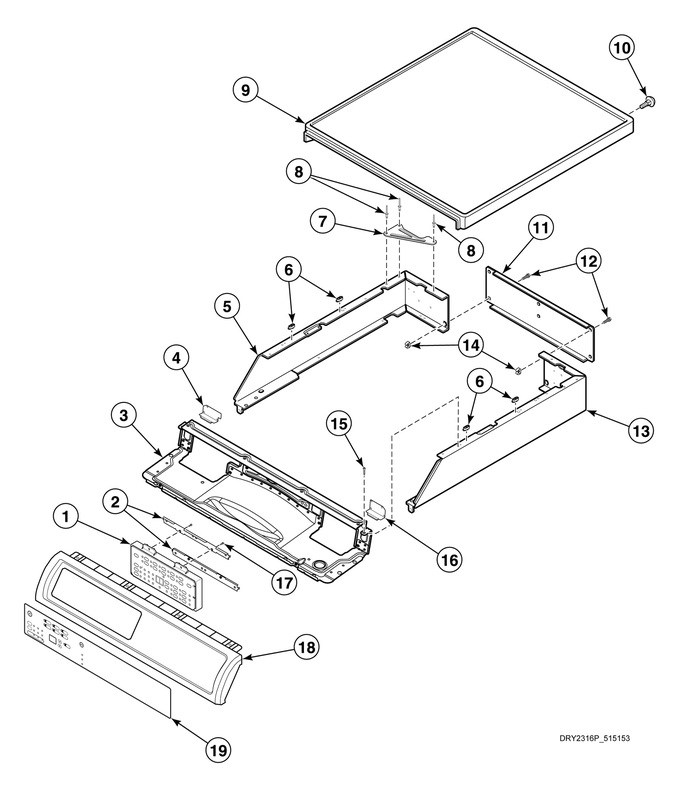

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D514121P		Control Assembly				$ 661.70
2	804611		Control Bracket (comment: 2 Required)		Appelez-nous	-
3	804613		Top Panel Brace Assembly		Appelez-nous	-
4	-		Not On Your Model		Appelez-nous	-
5	804627B		Control Wrapper (comment: Left)		Appelez-nous	-
6	803761		Top Panel Guide (comment: 4 Required; Use 39733 Screw To Attach)		Appelez-nous	-
7	805345		Rear Wrapper Brace		Appelez-nous	-
8	685847		Pop Rivet		Appelez-nous	-
9	804684		Top Panel				$ 484.06
10	29651		Bolt (comment: 4 Required)				$ 6.95
11	804614		Rear Access Panel		Appelez-nous	-
12	70240301		Screw (comment: 8 Required)		Appelez-nous	-
13	804630B		Control Wrapper (comment: Right)		Appelez-nous	-
14	70030501		Expansion Clip		Appelez-nous	-
15	D503688		Screw			Immediately	$ 6.95
16	-		Not On Your Model		Appelez-nous	-
17	804608		Screw				$ 0.49
18	804660		Control Panel Assembly (comment: Use 804667 Screw To Attach)			Immediately	$ 170.40
19	D515634		Control Overlay		Appelez-nous	-
