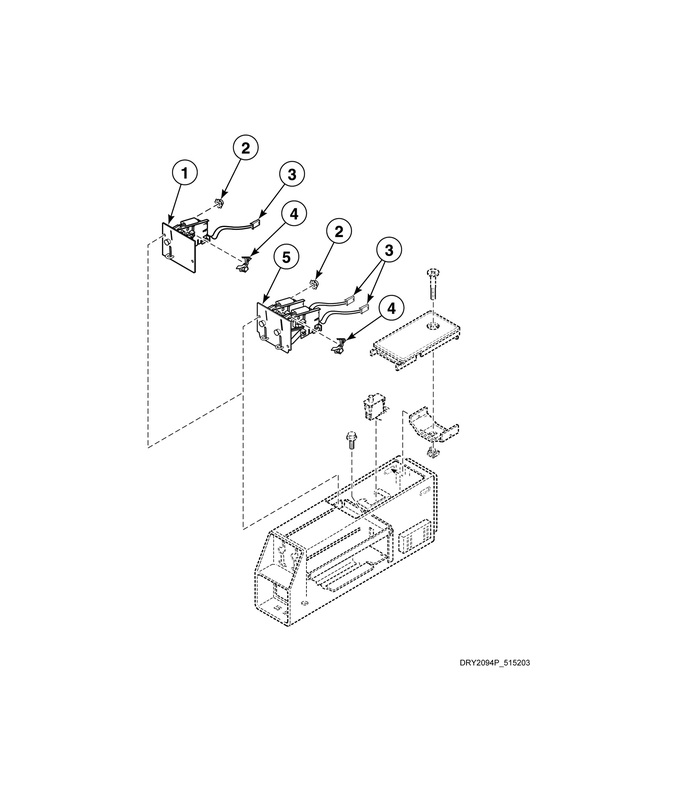

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	CK123		Coin Drop Assembly (comment: Singapore; New 1.00)		Appelez-nous	-
1	38462P		Coin Drop Assembly (comment: Token; 118-1 Mzp; .880 Diameter X .079 Thick; Brass)		Appelez-nous	-
1	38463		Coin Drop Assembly (comment: Token; 118-5 Mzp; .990 Diameter X .081 Thick; Silver)				$ 790.42
1	38464P		Coin Drop Assembly (comment: Canada; .25)			Immediately	$ 724.88
1	38475		Coin Drop Assembly (comment: Japan; 100 Yen)		Appelez-nous	-
1	CK077		Coin Drop Kit (comment: Taiwan; 10 Nt)		Appelez-nous	-
1	COMM PART		Coin Drop (comment: U.s.; $.25)   (Replaces: 70441601P)		Appelez-nous	-
1	38963P		Coin Drop (comment: Token 118-16 Not Available; Replacement For 38963p Coin Drop Only)		Appelez-nous	-
1	CK114		Coin Drop Assembly (comment: Singapore; Old 1.00)		Appelez-nous	-
2	WP487939		Nut   (Replaces: 29786)				$ 6.95
3	200674P		Opto Coupler				$ 151.27
4	201595P		Wire Guard (comment: Anti-stringing Security Device; Add To Coin Drops Beginning January 2005)		Appelez-nous	-
5	38467		Coin Drop Assembly (comment: Australia; .20 And 1.00)		Appelez-nous	-
5	DE81-04492A		Coin Drop Assembly (comment: England; 20 Pence And 1 Pound)   (Replaces: 38472)				$ 122.35
5	38519		Coin Drop Assembly (comment: Japan; 100 And 500 Yen)		Appelez-nous	-
5	38521		Coin Drop Assembly (comment: Korea; 100 And 500 Won)		Appelez-nous	-
5	39157		Coin Drop Assembly (comment: Israel; 1 And 5 Shekel)				$ 99.38
5	70482401		Coin Drop Assembly (comment: New Zealand; 1.00 And 2.00)		Appelez-nous	-
5	70441602		Coin Drop Assembly (comment: Canada; .25 And 1.00)				$ 849.69
