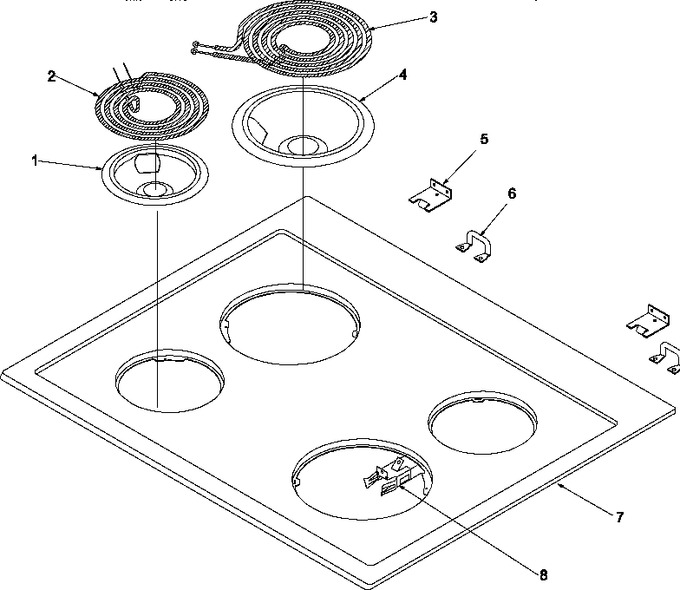

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10290353RW | Burner, Bowl 6`` (black) (Replaces: 308648B) |
|
Immediately | $ 19.27 | ||||
| 2 | WPW10259868 | Element, 4 Turn 1500w 6`` (Replaces: Y0051576) |
|
Immediately | $ 112.28 | ||||
| 3 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: Y0304871) |
|
Immediately | $ 105.92 | ||||
| 4 | WPW10290350 | Bowl, Burner 8`` (black) (Replaces: 308649B) |
|
Immediately | $ 15.25 | ||||
| 5 | Y066374F | Hinge, Lower Main Top, R.h. An |
|
- | |||||
| 6 | Y059260F | Hinge, Maintop, Upper |
|
- | |||||
| 7 | Y058436B | Top, Main (black) |
|
- | |||||
| 8 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| NI | Y0061164 | Screw No.8 - 18 X .250 |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 |
