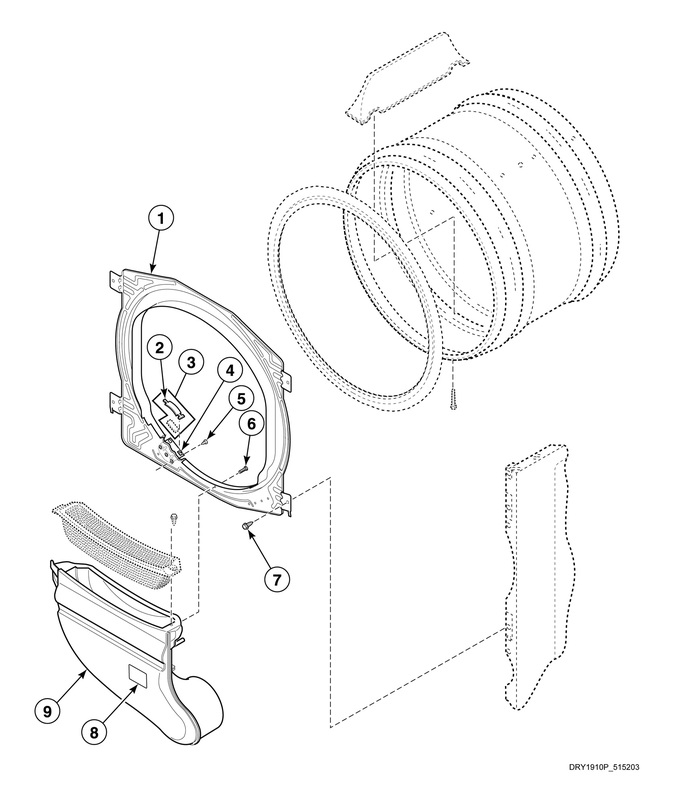

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510266P		Front Bulkhead Assembly (comment: Unpainted; Includes D510207p Cylinder Seal Assembly And Items 2-5 And 12)				$ 262.91
2	D513710		Cylinder Glide			Immediately	$ 10.81
3	RB170003		Glide Kit (comment: Includes Items 2 And 12; Quantity: 2 Of Each Item)			Immediately	$ 36.72
4	D510145		Cylinder Glide Bracket				$ 14.05
5	Sub. To D512973		Screw   (Replaces: 52864)		Appelez-nous	-
6	D500226		Screw   (Replaces: D514461)				$ 3.88
7	D503688		Screw			Immediately	$ 6.95
8	F8211201		Electrical Shock Label		Appelez-nous	-
8	F8211301		Pinched Fingers Label		Appelez-nous	-
9	D518432		Air Duct Assembly (comment: White)   (Replaces: D510151W)				$ 63.82
