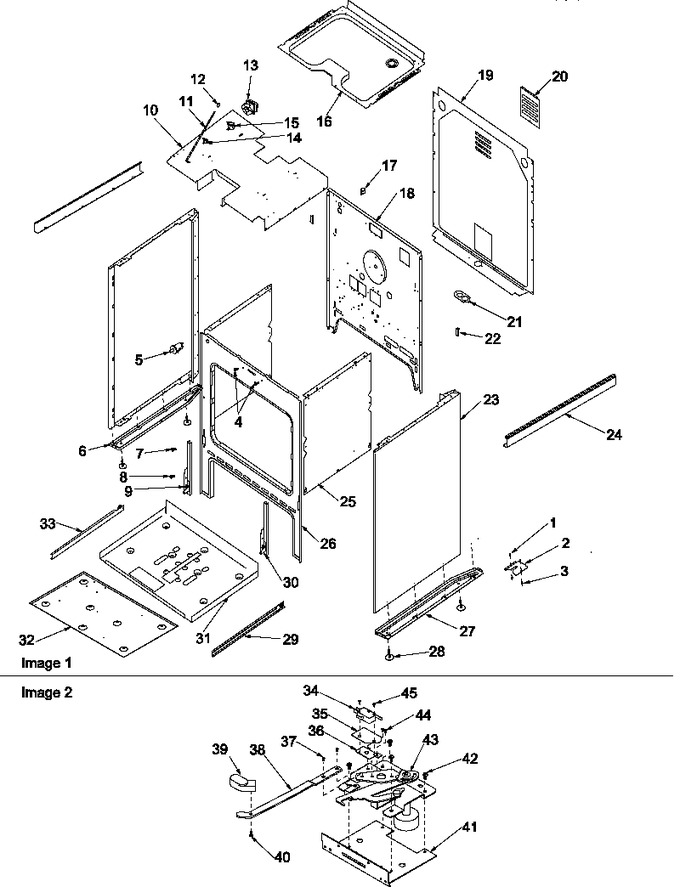

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0041813		Screw Cabinet Trim		Appelez-nous	-
2	Y0301028		Bracket		Appelez-nous	-
3	Y0301555		Anchor, Plastic		Appelez-nous	-
4	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
5	Y0314367		Switch, Oven Light		Appelez-nous	-
6	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
7	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
8	Y0079863		Screw, No.10-24x3/8 (ph Trs Hd)		Appelez-nous	-
9	Y0314572		Kit, Door Hinge(lh-hs)		Appelez-nous	-
10	Y0309773		Retainer, Top Insulation		Appelez-nous	-
11	Y0042737		Prop Rod Gt-483-583		Appelez-nous	-
12	Y0042002		Rod Tip, Rubber		Appelez-nous	-
13	Y0309092		Assy, Fan		Appelez-nous	-
14	Y0308417		Control, Fan		Appelez-nous	-
15	Y0308416		Switch, Limit Cont.		Appelez-nous	-
16	309054CG		Baffle, Drip		Appelez-nous	-
17	Y0041869		Timerman		Appelez-nous	-
18	0309081		Retainer, Rear Insul.		Appelez-nous	-
19	Y0307342		Cover, Rear		Appelez-nous	-
20	Y0058435		Access Plate, Rear		Appelez-nous	-
21	0058311		Plate, Main Inlet Wire		Appelez-nous	-
22	Y0091587		Cable, Clip Esm		Appelez-nous	-
23	306081W		Panel, Side (wht)		Appelez-nous	-
24	304303B		Strip, Filler		Appelez-nous	-
25	0304282		Retainer, Insulation (side)		Appelez-nous	-
26	Y00000000		See Note See Note Front Frame Not Field Replaceable		Appelez-nous	-
27	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
28	314187B		Leg,leveling Xxx		Appelez-nous	-
29	0314663		Track, Storage Dwr Rh		Appelez-nous	-
30	Y0314573		Kit, Door Hinge(rh-ss)		Appelez-nous	-
31	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
32	Y0315146		Shield, Heat		Appelez-nous	-
33	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
34	Y0065780		Switch, Clean Circuit				$ 11.77
35	Y0091523		Insulation, Esm		Appelez-nous	-
36	Y0302316		Bracket, Switch		Appelez-nous	-
37	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
38	303040W		Handle, Door Latch (wht)		Appelez-nous	-
39	306830W		Knob, Latch Handle (wht)		Appelez-nous	-
40	Y0094682		Screw Type 23 6-32x5/16		Appelez-nous	-
41	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
42	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
43	Y0300327		Latch, Oven Door		Appelez-nous	-
44	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
45	Y0092365		Screw 4-40x1		Appelez-nous	-
NI	Y0091599		Screw, No.10-32x1/2 (ph Taptite)		Appelez-nous	-
