SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

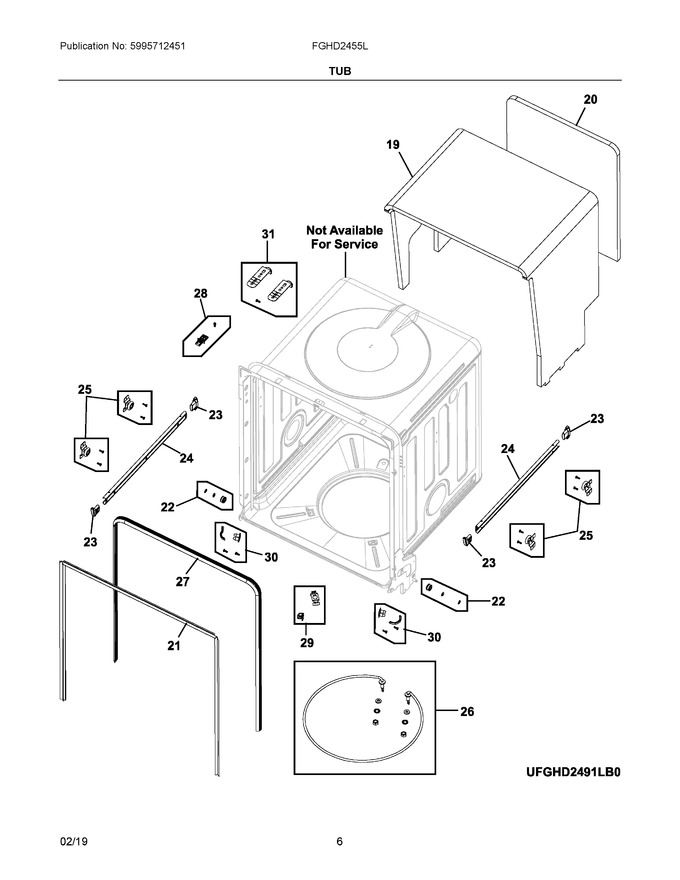

19	5304475591		Insulation, Blanket, Top & Sides				$ 162.86
20	5304475592		Insulation, Blanket, Back				$ 68.46
21	5304475593		Seal Kit, Cabinet				$ 128.57
22	5304475594		Roller Assembly, Hinge, (2)				$ 16.96
23	5304475595		Cap, Rack Slide, (4)				$ 20.63
24	5304475596		Slide, Upper Rack, (2)				$ 63.53
25	5304475597		Roller Assembly, Rack Slide, (4), W/screws				$ 41.11
26	5304516630		Heater Assembly, Tub, W/nuts-washers   (Replaces: 5304475598)				$ 207.49
27	5304475599		Gasket, Tub			Immediately	$ 51.36
28	5304475600		Strike Assembly, Latch, W/screws				$ 59.54
29	5304475601		Thermostat Assembly, Hi Limit, W/bracket				$ 39.69
30	5304475602		Mounting Kit, Side, W/screws				$ 45.60
31	5304516698		Bracket Assembly, Top Cabinet, W/screws   (Replaces: 5304475603)				$ 24.19
