02 - Backguard
03 - Cooktop Parts

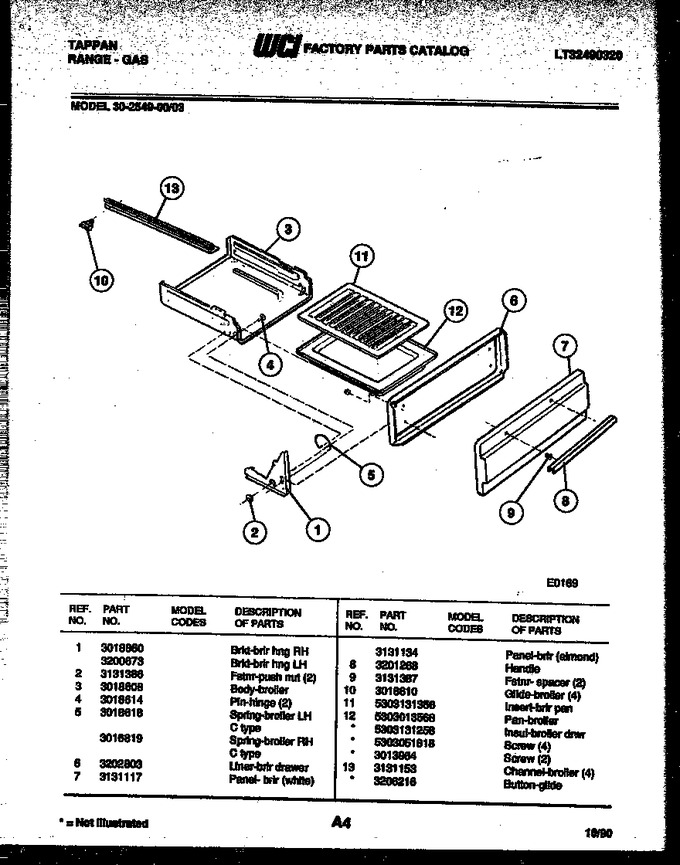

04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018860 | Brkt.-brlr Hng. Rh |
|
- | |||||
| 2 | 3131386 | Fstnr, Push Nut (2) |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin, Hinge (2) |
|
- | |||||
| 5 | 3018618 | Spring, Broiler Lh C Type |
|
- | |||||
| 6 | 3202803 | Liner - Brlr Drawer |
|
- | |||||
| 7 | 3131134 | Panel - Brlr (almond) |
|
- | |||||
| 8 | 3201268 | Handle |
|
- | |||||
| 9 | 3131387 | Fstnr, Spacer (2) |
|
- | |||||
| 10 | 3018610 | Glide, Broiler (4) |
|
$ 29.40 | |||||
| 11 | 5303131356 | Insert - Brlr Pan |
|
- | |||||
| 12 | 5303013568 | Pan-broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| *40903 | 3206216 | Button Glide |
|
- | |||||
| 12A | 5303131258 | Insul - Broiler Drwr (non-illustrated) |
|
- | |||||
| 12B | 5303051818 | Screw (4) (non-illustrated) |
|
- | |||||
| 12B | 3013964 | Screw (2) (non-illustrated) |
|
- | |||||
| 1A | 3200673 | Brkt.-brlr Hng. Lh |
|
- | |||||
| 5A | 3016819 | Spring, Broiler Rh C Type |
|
- |
