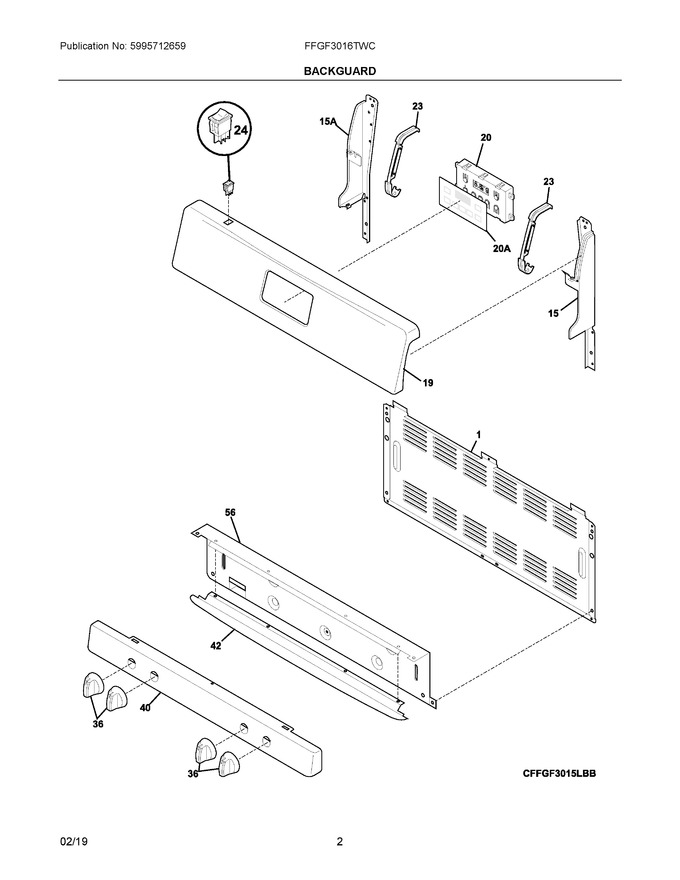

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall |
|
$ 57.64 | |||||
| 15 | 316602102 | Cap-end, White, Rh |
|
$ 57.41 | |||||
| 19 | 316541644 | Panel, Backguard, White |
|
$ 153.81 | |||||
| 20 | 5304518661 | Control, Electronic |
|
Immediately | $ 148.07 | ||||
| 21 | 154079601 | Nut, Hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 23 | 316441600 | Bracket-clock Mtg, Black |
|
$ 20.48 | |||||
| 24 | 5304527842 | Switch, Rocker, White (Replaces: 5304515133) |
|
Immediately | $ 16.13 | ||||
| 36 | 5304507387 | Knob, Top Valve, White |
|
$ 21.99 | |||||
| 40 | 316605353 | Panel, Manifold, White |
|
- | |||||
| 42 | 316416205 | Trim, Extrusion, Gray |
|
$ 51.57 | |||||
| 56 | 316230708 | Shield, Backguard, Inner |
|
$ 61.66 | |||||
| 15A | 316602103 | Cap-end, White, Lh |
|
$ 58.12 | |||||
| 20A | 316220728 | Overlay, Clock, White |
|
Immediately | $ 39.44 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 10.02 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
