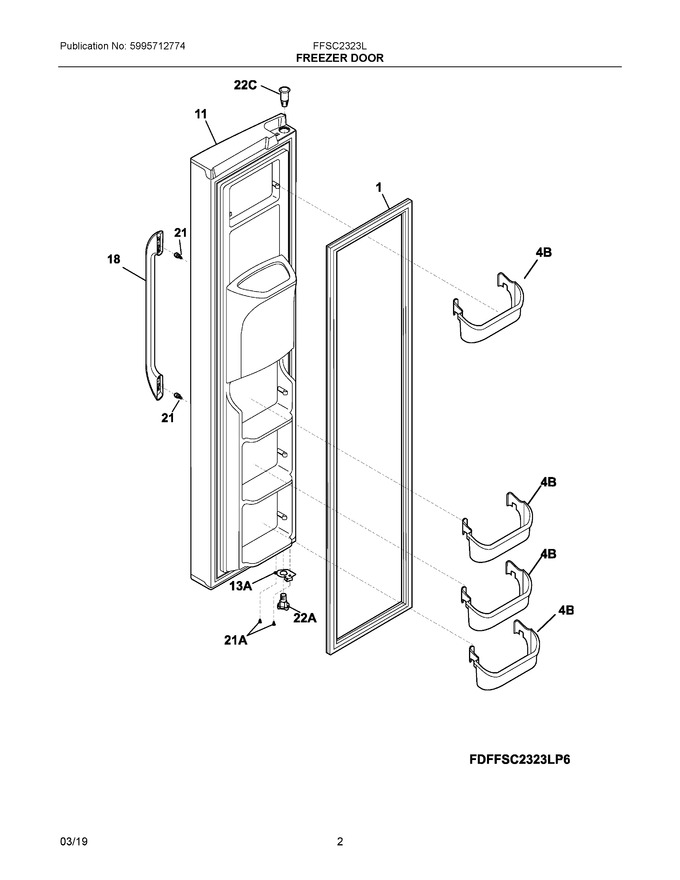

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241510202 | Gasket-frzr Door, White, Magnetic |
|
$ 286.53 | |||||
| 11 | 241993804 | Door-frzr, White, Complete Assy |
|
- | |||||
| 18 | 242059103 | Handle-door, White |
|
$ 129.78 | |||||
| 21 | 241695904 | Screw, Type Ab, #10-16 X .5 |
|
$ 14.41 | |||||
| 13A | 241942604 | Door Stop, Black, Frzr |
|
$ 20.56 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.09 | |||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| 4B | 241511601 | Bin-door |
|
$ 42.44 | |||||
| NI | 241834703 | Harness-wiring, Door |
|
$ 109.96 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 5303918596 | Dispenser Heater Kit, 115, Single Paddle |
|
$ 317.38 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 |
