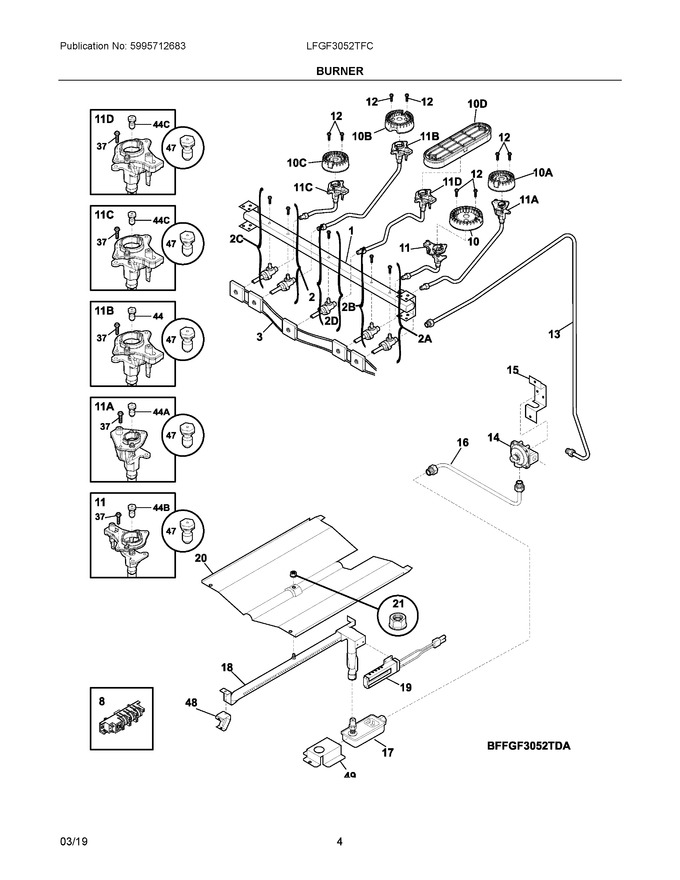

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304513540 | Manifold, Pipe |
|
$ 99.35 | |||||
| 2 | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 62.34 | ||||
| 3 | 5304528828 | Harness, Ignition (Replaces: 5304506556) |
|
$ 107.53 | |||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 76.06 | ||||
| 10 | 316438400 | Burner, Sealed, 17k |
|
Immediately | $ 83.42 | ||||
| 11 | 316536621 | Ignitor/orifice Assy .,, Top Burner, Right Front, 16k, W/tube & Holder |
|
$ 170.10 | |||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 15.17 | ||||
| 13 | 5304512535 | Tube, 7/16, Aluminum, Reg To Manf, W/fittings |
|
- | |||||
| 14 | 316091711 | Regulator, Pressure (Replaces: 5304498819) |
|
Immediately | $ 90.03 | ||||
| 15 | 316091600 | Bracket, Regulator |
|
$ 73.56 | |||||
| 16 | 316065006 | Tube, Valve To Regul, 3/8 |
|
$ 122.09 | |||||
| 17 | 3203459 | Valve, Safety |
|
$ 303.64 | |||||
| 18 | 316114300 | Burner, Oven |
|
$ 169.88 | |||||
| 19 | 5304509706 | Ignitor, Oven Burner |
|
Immediately | $ 189.59 | ||||
| 20 | 316496001 | Baffle, Oven Burner |
|
$ 78.33 | |||||
| 21 | 154079601 | Nut, Hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 37 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 316527502 | Orifice, Burner, 12k |
|
$ 22.68 | |||||
| 47 | GRLP4 | Lp Conversion Kit, W/instructions, Optional, Accessory |
|
Immediately | $ 56.70 | ||||
| 48 | 3018603 | Bracket, Support, Oven Burner |
|
- | |||||
| 49 | 316416300 | Bracket, Safety Valve |
|
- | |||||
| 10A | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 10B | 316438000 | Burner, Sealed, 12k |
|
$ 67.81 | |||||
| 10C | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10D | 316559300 | Burner, Sealed, 9.5k, Oval |
|
$ 177.19 | |||||
| 11A | 316536610 | Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube |
|
Immediately | $ 92.38 | ||||
| 11B | 316536612 | Ignitor/orifice Assy., Top Burner, Left Rear, 12k, W/holder, Tube |
|
$ 116.52 | |||||
| 11C | 316536602 | Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube |
|
$ 132.62 | |||||
| 11D | 316536623 | Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube |
|
$ 147.71 | |||||
| 2A | 5304506547 | Valve, Top Burner, Black Stem, 500btu |
|
$ 69.01 | |||||
| 2B | 5304507282 | Valve, Top Burner, White Stem, 1500btu (Replaces: 5304506550) |
|
Immediately | $ 53.85 | ||||
| 2C | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 82.66 | ||||
| 2D | 5304506551 | Valve, Top Burner, Pink Stem, 2500btu |
|
$ 61.43 | |||||
| 44A | 316527504 | Orifice, Burner, 5k |
|
$ 22.68 | |||||
| 44B | 316527508 | Orifice, Top Burner, 16k |
|
$ 18.43 | |||||
| 44C | 316527500 | Orifice, Burner, 9.5k |
|
$ 21.40 | |||||
| NI | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316021104 | Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt |
|
$ 7.79 | |||||
| NIB | 316257400 | Bracket, Spark Module |
|
$ 15.17 | |||||
| NIC | 5304505563 | Wire, Ground, Spark Module, W/connector |
|
Immediately | $ 16.23 | ||||
| NID | 5304494425 | Harness, Ignitor (Replaces: 316580602) |
|
$ 86.45 |
