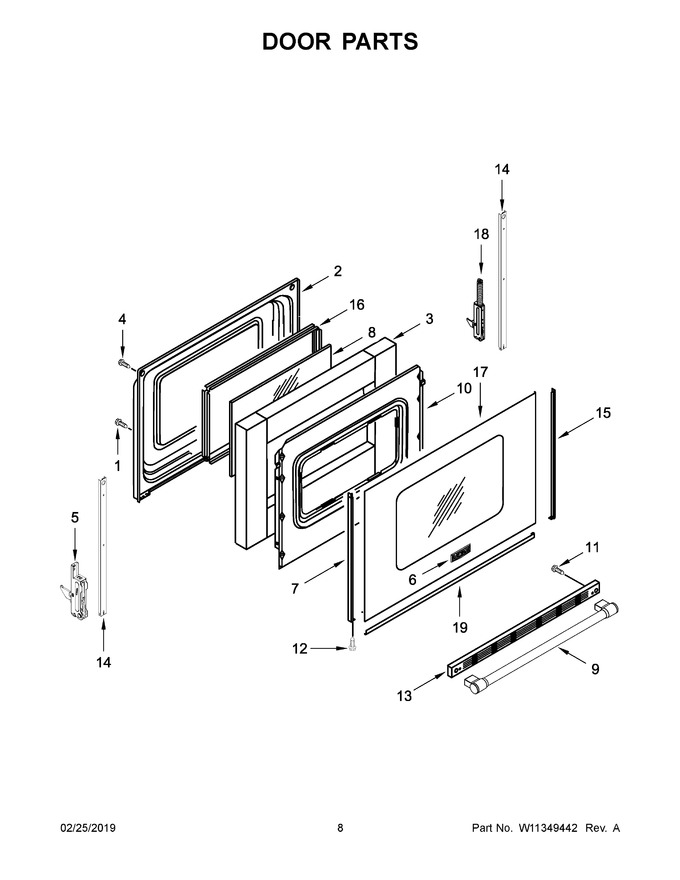

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 319.62
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 86.89
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.00
5	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
6	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 36.31
7	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 75.81
8	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 160.45
9	W10920643		Handle, Oven Door (white)   (Replaces: W10889625)				$ 194.11
10	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 199.17
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.09
12	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
13	W11093912		Trim, Oven Door Vent (white)   (Replaces: W10875232)				$ 121.39
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 23.72
15	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 62.94
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 76.37
17	WPW10409945		Glass, Window (white)   (Replaces: W10409945)			Immediately	$ 223.91
18	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 65.48
19	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 52.61
