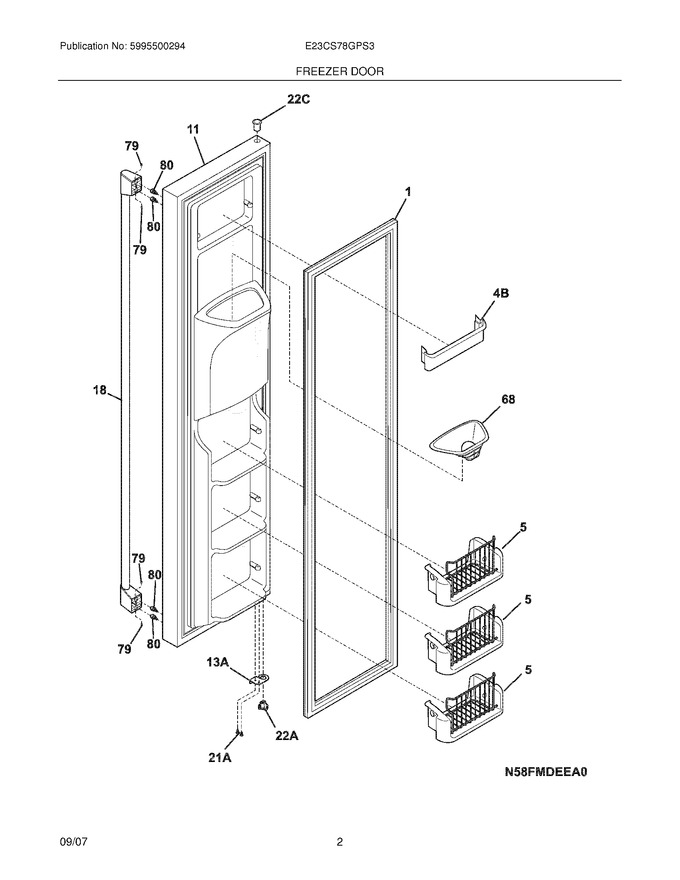

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241545006		Bin-tilt Out,tilt-out		Appelez-nous	-
11	241615165		Door-frzr,stainless ,complete Assy		Appelez-nous	-
18	241637921		Handle Assembly,stainless ,w/endcaps		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4B	241511602		Bin-door   (Replaces: 241511604)				$ 52.72
F1	241510202		Gasket-frzr Door,white ,magnetic				$ 286.53
NI	241601001		Wrench,allen		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240552102		Harness-wiring,door				$ 77.60
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
