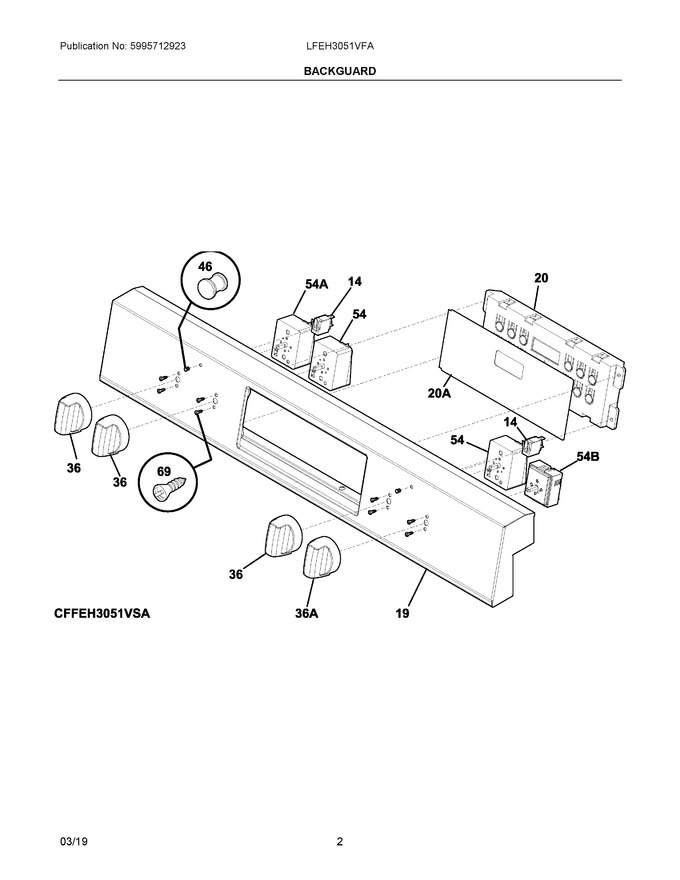

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 19 | 5304520366 | Control Panel, Stainless |
|
- | |||||
| 20 | 5304515464 | Controller, Electronic, Es332 |
|
Immediately | $ 320.98 | ||||
| 36 | 5304514116 | Knob, Infinite Switch, Stainless, Single |
|
Immediately | $ 46.26 | ||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 20A | 316419387 | Overlay, Clock, Black, Es332 |
|
$ 35.65 | |||||
| 36A | 5304514117 | Knob, Infinite Switch, Stainless, Dual |
|
Immediately | $ 48.15 | ||||
| 54A | 316436001 | Switch, Infinite, Large Element |
|
Immediately | $ 51.68 | ||||
| 54B | 316238202 | Switch, Infinite Radian, Dual |
|
Immediately | $ 128.48 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5304520393 | Spacer, Foam Block, 2" X 1", W/adhesive |
|
- | |||||
| NI | 5304515471 | Harness, Wiring, Backsplash |
|
- |
