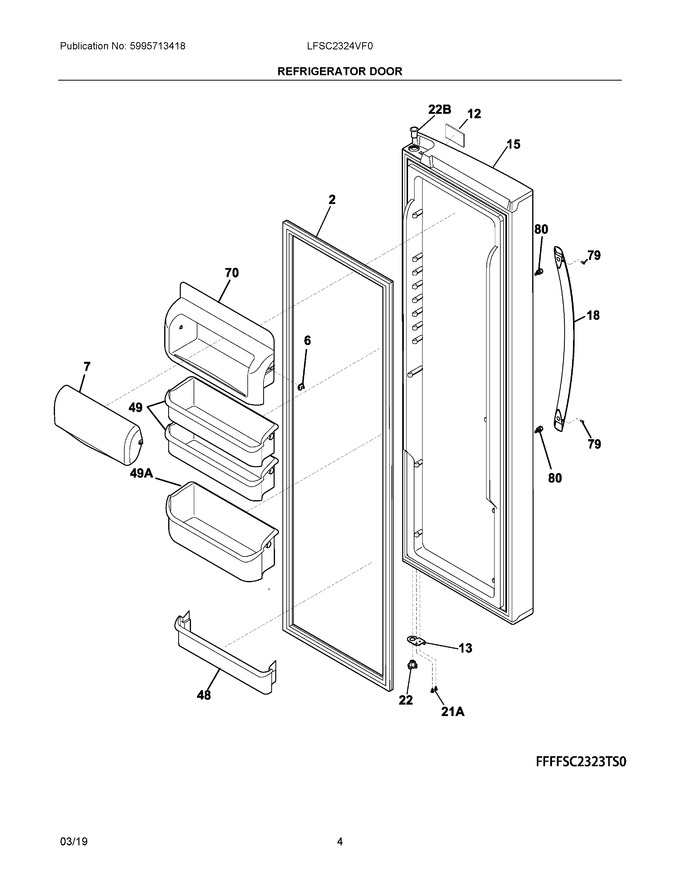

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510207 | Gasket-refr Door, Gray, Magnetic (Replaces: 241510205) |
|
Immediately | $ 97.14 | ||||
| 6 | 241515901 | Lug-dairy Compartment |
|
$ 42.47 | |||||
| 7 | 241515606 | Door-dairy (Replaces: 241515601) |
|
$ 40.96 | |||||
| 12 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 21.27 | |||||
| 15 | 807460185 | Ff Door |
|
- | |||||
| 18 | 5304511770 | Handle, Door, Stainless, W/set Screws |
|
Immediately | $ 229.03 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 48 | 241511701 | Bin-door, Ref |
|
Immediately | $ 67.21 | ||||
| 49 | 241505301 | Bin-door, 2-liter |
|
Immediately | $ 76.40 | ||||
| 70 | 241515801 | Compartment-dairy, Removable |
|
$ 177.89 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 | |||||
| 49A | 241505501 | Bin-door, Gallon |
|
Immediately | $ 99.03 | ||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- |
