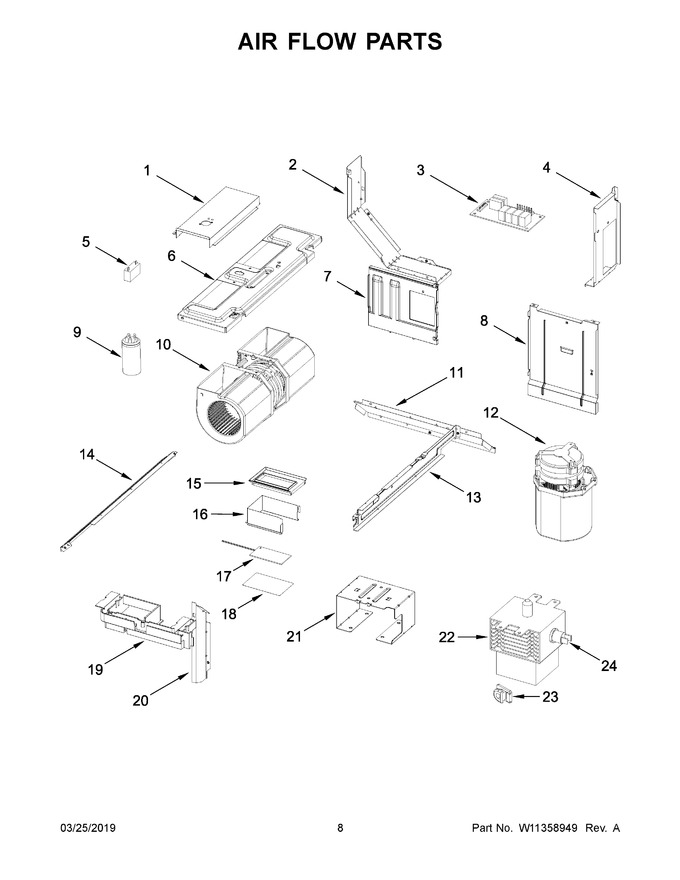

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11095818		Outlet, Cavity (back)				$ 148.58
2	W11095827		Air Deflector, Right		Appelez-nous	-
3	W11286002		Pcba, Hood Control				$ 236.69
4	W11095824		Outlet Deflector, Right				$ 67.51
5	W11405832		Capacitor, Hood Motor   (Replaces: W10605896)				$ 24.52
6	W11086272		Chassis, Fan		Appelez-nous	-
7	W11095794		Deflector, Cooling Fan		Appelez-nous	-
8	W11095804		Hood Deflector, Right		Appelez-nous	-
9	W10557536		Sensor, Humidity				$ 109.12
10	W11712433		Motor, Hood   (Replaces: W11083236)			Immediately	$ 179.28
11	W11096432		Hood Deflector, Back		Appelez-nous	-
12	W11213353		Hood Motor, Single   (Replaces: W11039275)			Immediately	$ 182.33
13	W11095814		Divider, Air		Appelez-nous	-
14	W11095830		Air Guide, Left		Appelez-nous	-
15	W11178702		Seal, Lighting		Appelez-nous	-
16	W11086300		Housing, Cavity Lighting		Appelez-nous	-
17	W11322424		Board, Led Lamp   (Replaces: W11293455)				$ 73.56
18	W11186948		Foil, Lamp				$ 67.55
19	W11099491		Holder, Wire		Appelez-nous	-
20	W11095828		Channel, Hood Back		Appelez-nous	-
21	W11323215		Housing, Tranformer		Appelez-nous	-
22	W11402082		Magnetron   (Replaces: W11115131)			Immediately	$ 325.40
23	W11126543		Seal, Rubber		Appelez-nous	-
24	W11125676		Thermostat, Magnetron				$ 78.69

    View Diagram in Separate Window       Print Part List
