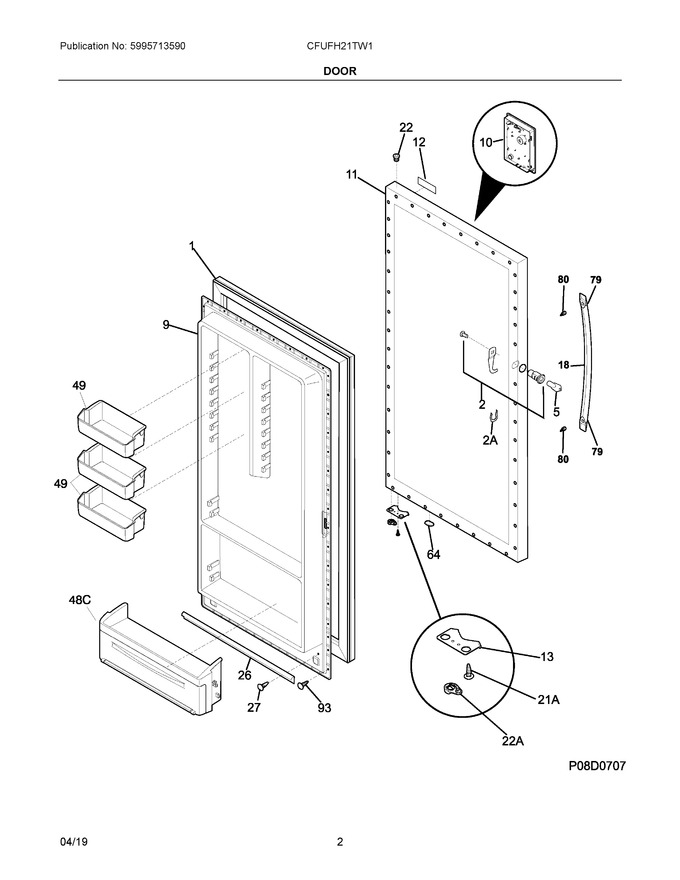

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505531 | Gasket, White |
|
- | |||||
| 2 | 297318600 | Lock Assy |
|
$ 36.87 | |||||
| 5 | 297147700 | Key, Lock |
|
Immediately | $ 7.57 | ||||
| 9 | 297382800 | Panel, Inner |
|
$ 210.78 | |||||
| 11 | 297316736 | Panel-outer Door, White |
|
$ 667.98 | |||||
| 12 | 5304513853 | Nameplate |
|
- | |||||
| 13 | 297416200 | Door Stop |
|
$ 15.90 | |||||
| 18 | 297422020 | Handle |
|
$ 99.77 | |||||
| 22 | 216970802 | Bearing, Hinge, Natural, Top |
|
Immediately | $ 10.85 | ||||
| 26 | 297387100 | Gasket, Secondary |
|
$ 19.52 | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 16.63 | |||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 14.18 | ||||
| 49 | A00299203 | Bin-door (Replaces: 5304500224) |
|
$ 80.33 | |||||
| 64 | 297014702 | Plug-button, Door Base |
|
$ 9.41 | |||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw, Ph Truss Head, 8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 14.46 | |||||
| 22A | 297415900 | Ramp, Door Closer |
|
Immediately | $ 24.74 | ||||
| 2A | 297213300 | Clip, Spring |
|
$ 10.17 | |||||
| 48C | 5304510193 | Bin, Full |
|
$ 73.57 | |||||
| 79A | 297295900 | Screw-set |
|
Immediately | $ 19.52 | ||||
| NI | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 18.20 | ||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| NI | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 11.34 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 |
