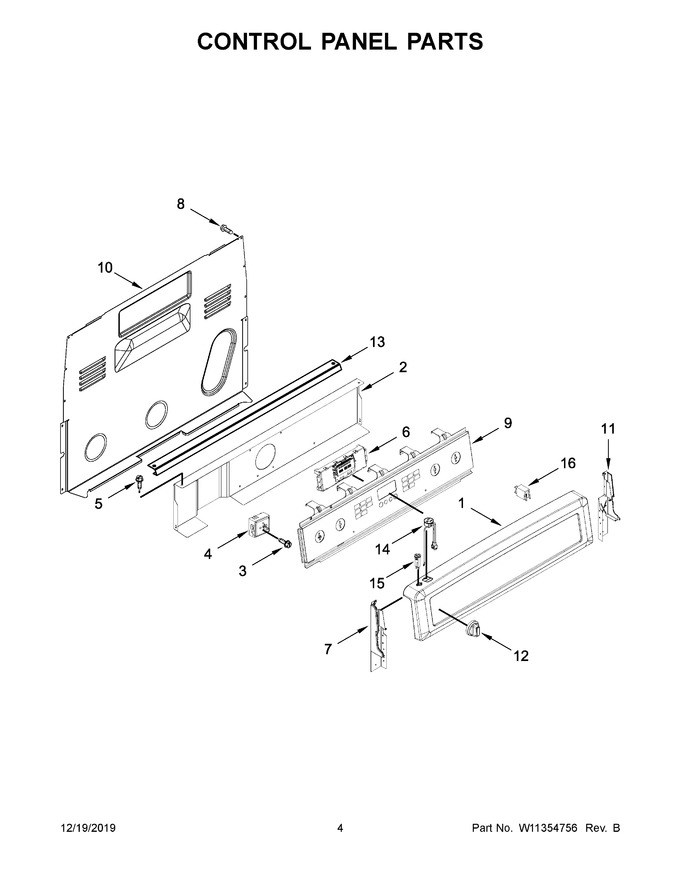

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10645850		Console (white)				$ 257.94
2	W10134247		Shield, Heat			Immediately	$ 307.56
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
4	W10917724		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
4	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 190.52
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
6	WPW10340323		Control (mrc)   (Replaces: W10340323)			Immediately	$ 350.63
7	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 36.39
8	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
9	W10887356		Overlay, Active (white)				$ 272.66
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 52.14
12	W11039092		Knob (white)   (Replaces: W10892254)			Immediately	$ 55.61
13	W10525121		Bracket, Console Mounting				$ 84.73
14	W10849725		Receptacle (white)   (Replaces: W10749727)			Immediately	$ 72.71
15	WP9757601		Circuit Breaker (white)   (Replaces: 9757601)			Immediately	$ 59.00
16	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 77.68
4A	W10911303		Switch, Infinite (left Rear And Right Rear)   (Replaces: W10578768)			Immediately	$ 94.18
4A	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 190.52
4B	W10917724		Switch, Infinite (right Front)   (Replaces: W10437094)			Immediately	$ 116.42
4B	W10911303		Switch, Infinite (right Front)   (Replaces: W10578768)			Immediately	$ 94.18
