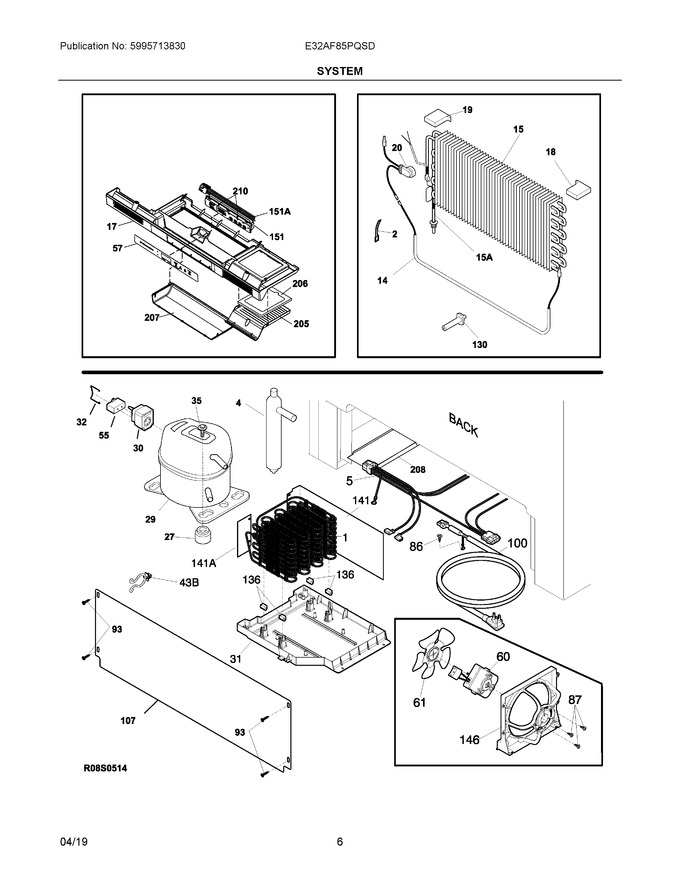

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 2 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 31.67 | ||||
| 5 | 297325503 | Harness-wiring, Main |
|
$ 114.71 | |||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 15 | 297414901 | Evaporator (Replaces: 216997300) |
|
Immediately | $ 171.34 | ||||
| 17 | 297269000 | Box-control |
|
$ 140.12 | |||||
| 18 | 297078701 | Insulator-evap, Styrofoam, Rh |
|
$ 3.62 | |||||
| 19 | 297078801 | Insulator-evap, Styrofoam, Lh |
|
$ 3.62 | |||||
| 20 | 297216600 | Thermostat, Defrost |
|
Immediately | $ 27.52 | ||||
| 27 | 297368501 | Bolt, Compressor |
|
$ 4.96 | |||||
| 29 | 5304494536 | Compressor, Egd80hlc |
|
$ 689.59 | |||||
| 30 | 297237702 | Controller Tsd |
|
$ 105.86 | |||||
| 31 | 297165800 | Pan-drain |
|
$ 89.15 | |||||
| 32 | 241982601 | Clip, Controller, Compressor |
|
$ 10.63 | |||||
| 34 | 5304511843 | Sleeve |
|
$ 13.74 | |||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 22.42 | |||||
| 55 | 297286812 | Capacitor-run, 250 Va, 12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 57 | 297269402 | Overlay (Replaces: 297269403) |
|
Immediately | $ 73.00 | ||||
| 60 | 242018301 | Motor-condenser Fan (Replaces: 297279502) |
|
Immediately | $ 138.56 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 10.63 | |||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 87 | 5304463290 | Screw, Hi-lo Blunt, #8-18x1/2 |
|
- | |||||
| 93 | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| 100 | 297366805 | Cord, Power (Replaces: 297366800) |
|
$ 68.68 | |||||
| 107 | 297165400 | Access Cover, Machine Compt. |
|
$ 19.85 | |||||
| 130 | 297244700 | Support, Evaporator Mtg |
|
$ 4.26 | |||||
| 136 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 19.85 | |||||
| 141 | 297164200 | Divider, Air Flow |
|
$ 26.23 | |||||
| 146 | 297164000 | Shroud-fan Orfice |
|
$ 76.97 | |||||
| 151 | 5304497789 | Controller, Electronic |
|
$ 253.49 | |||||
| 205 | 297294302 | Holder, Air Filter |
|
- | |||||
| 206 | EAFCBF | Filter, Air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 207 | 297294501 | Shield-light, White |
|
$ 36.02 | |||||
| 210 | 216905301 | Screw, Ph 3-24x.25, Electronic Assy |
|
$ 14.46 | |||||
| 141A | 297194700 | Divider, Small, Air Flow |
|
- | |||||
| 151A | 808772801 | Harness-jumper (Replaces: 5304495183) |
|
$ 41.27 | |||||
| 15A | 297217900 | Heat Exchanger, Suct/cap Tube |
|
Immediately | $ 91.82 | ||||
| 43B | 297315800 | Clip, Wire |
|
$ 10.13 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 297110400 | Thermistor |
|
Immediately | $ 72.68 | ||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NIA | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 |
