SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves

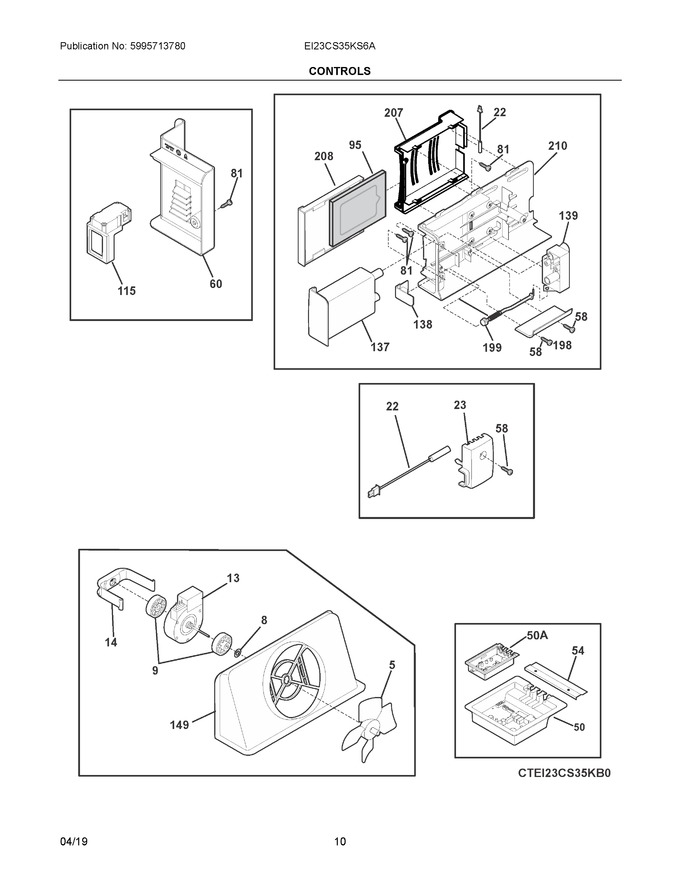

06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5308000010		Fan Blade, Red, Evaporator Fan			Immediately	$ 49.03
8	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
9	241518301		Bushing, Motor Mounting				$ 66.63
13	242290001		Motor-blower				$ 156.47
14	242135301		Clip, Evap Fan Motor, Evap Fan Motor				$ 7.79
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	241845401		Housing-sensor		Appelez-nous	-
50	5304499463		Board-main Power, Board & Housing				$ 286.67
54	241532401		Channel				$ 30.47
60	242153901		Diffuser-air		Appelez-nous	-
81	218843801		Screw, Hx Wshr Hd Sems, 8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
95	EAFCBF		Filter, Air   (Replaces: 242047801)			Immediately	$ 27.64
115	241853801		Damper Assy, W/seal				$ 157.35
137	242175101		Filter-water, Water, Carbon Cassette, Front, With O'rings		Appelez-nous	-
138	241754602		Button-filter Release				$ 35.28
139	240396002		Base-water Filter			Immediately	$ 119.66
149	242204504		Shroud-evap Fan Mtg   (Replaces: 241517601)				$ 38.68
198	241754801		Support, Water Filter		Appelez-nous	-
199	240397501		Rod				$ 55.57
207	242154001		Housing-air Filter		Appelez-nous	-
208	241754302		Sleeve, Air Filter, Silver, Front				$ 51.46
210	241755203		Housing-water Filtr		Appelez-nous	-
50AA	241891603		Board-led Power		Appelez-nous	-
NIA	240398401		Spring-filter Release Rod				$ 59.16
NIA	241852501		Clip, Wiring Harness				$ 15.60
NIA	241852502		Clip, Retainer, Harness		Appelez-nous	-
NIA	242156301		Insulation-air Duct		Appelez-nous	-
NIA	241528304		Seal, Foam, Evap Fan Assy		Appelez-nous	-
NIB	242036802		Clip, Plastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
