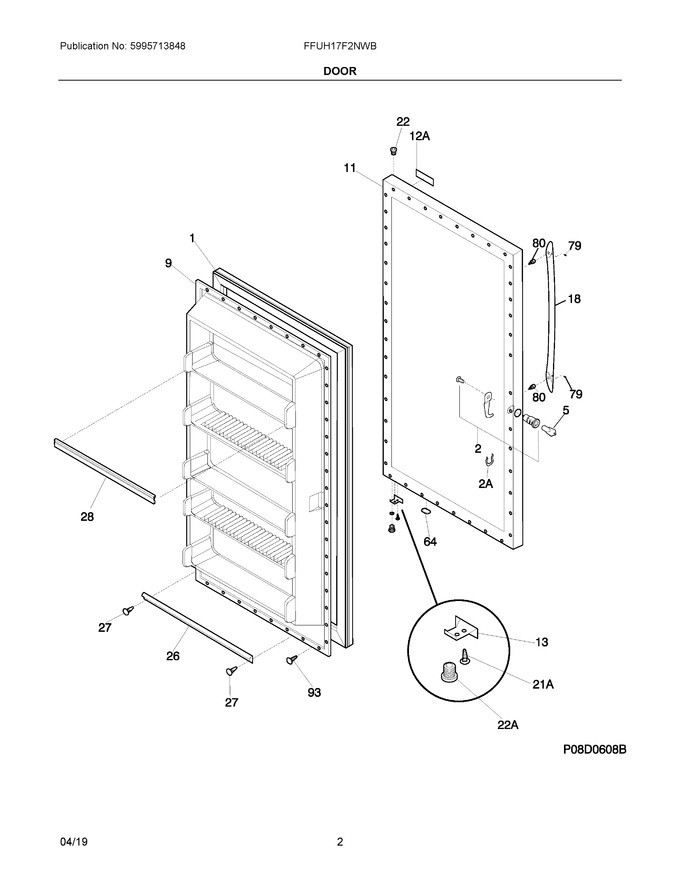

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door, White (Replaces: 216522359) |
|
Immediately | $ 188.19 | ||||
| 2 | 297318600 | Lock Assy |
|
$ 36.87 | |||||
| 5 | 297147700 | Key, Lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216527816 | Panel-inner Door, Frzr |
|
$ 257.51 | |||||
| 11 | 297316509 | Panel-outer Door, White |
|
$ 226.09 | |||||
| 13 | 297257000 | Door Stop, Chrome, Rh |
|
$ 16.63 | |||||
| 18 | 297311201 | Handle-door, White |
|
Immediately | $ 80.60 | ||||
| 22 | 216970802 | Bearing, Hinge W/o'ring, Top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket, Secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip, Panel Mtg |
|
$ 11.57 | |||||
| 28 | 216951600 | Rack-door, (5) |
|
$ 69.40 | |||||
| 64 | 297014702 | Plug-button, Door Base |
|
$ 9.41 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 98 | 216858001 | Screw, Ph Truss Head, 8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 12A | 242062801 | Nameplate, White |
|
$ 11.65 | |||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge, Btm, W/o'ring |
|
$ 12.29 | |||||
| 2A | 297213300 | Clip, Spring |
|
$ 10.17 | |||||
| NIA | 5304521296 | Handle-door, Install Kit, White (Replaces: 297429100) |
|
$ 51.34 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 |
