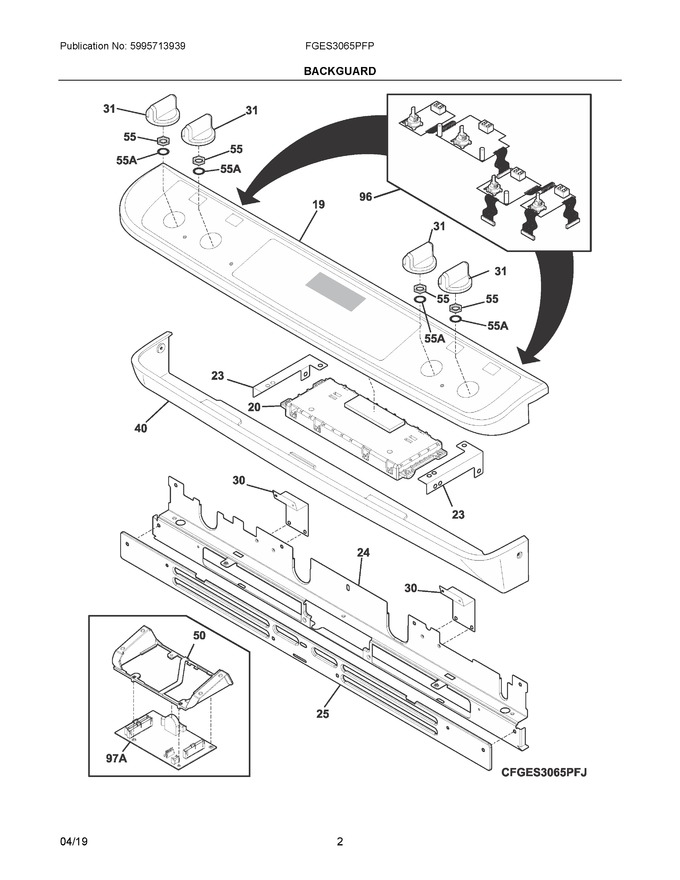

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	139059417		Panel Assembly, Control, Stainless, W/overlay-trim				$ 643.76
20	5304503758		Controller, Electronic, Es530w6			Immediately	$ 360.23
23	318921300		Bracket, Control Mtg, (2)				$ 17.64
24	139074902		Frame, Vent Trim		Appelez-nous	-
25	139075001		Cover, Vent Trim, Black				$ 60.52
30	318928502		Bracket, Control Panel, Rear, (2)				$ 15.60
31	316564406		Knob, Control, Stainless				$ 155.22
40	318912908		Panel, Service, Black				$ 262.57
50	318917700		Chassis, Uib Mounting				$ 91.46
55	316247700		Nut, Mounting				$ 18.20
96	318411400		Control Assembly, Complete, Rotary, W/4 Controls				$ 426.98
55A	316247800		Washer, Lock, Mtg				$ 18.20
97A	316578340		Board, Esec, Uib Touch				$ 214.24
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304520759		Harness, Wiring, Display				$ 94.27
NI	5304517731		Harness, Wiring, Hoc To, Esec/power Brd				$ 36.14
NI	5304517733		Harness, Wiring, Uib To, Timer				$ 17.72
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92
NIAA	5304497426		Plate, Barrier, Power Board				$ 12.06
