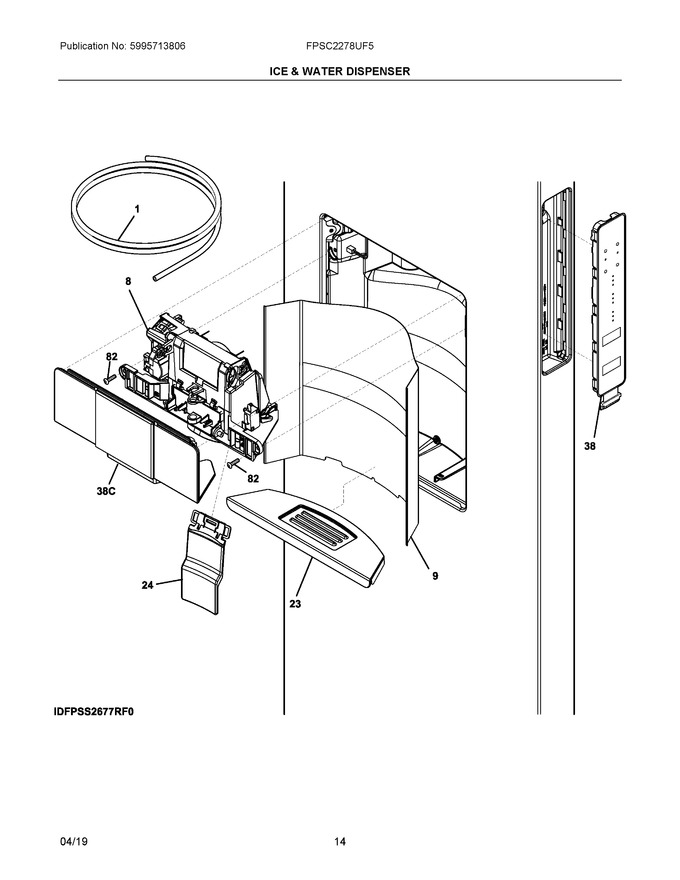

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 20.56 | ||||
| 8 | 242270207 | Module Assembly, Ice & Water, Complete |
|
$ 164.57 | |||||
| 9 | 809089802 | Liner, Sump Back, Stainless |
|
- | |||||
| 23 | 5304501179 | Sump Assembly, Ice & Water, Stainless (Replaces: 5304504414) |
|
$ 170.63 | |||||
| 24 | 5304501181 | Actuator, Ice Lever, Silver |
|
$ 100.86 | |||||
| 38 | 242048230 | User Interface,, Assembly, Black, W/board & Pad |
|
$ 243.35 | |||||
| 82 | 240363403 | Screw, 8-18 X 0.500, 2 |
|
- | |||||
| 38C | 809091204 | S/a Pur-ui Control Ui Bm |
|
$ 296.52 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 203.24 | |||||
| NIA | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 20.56 |
