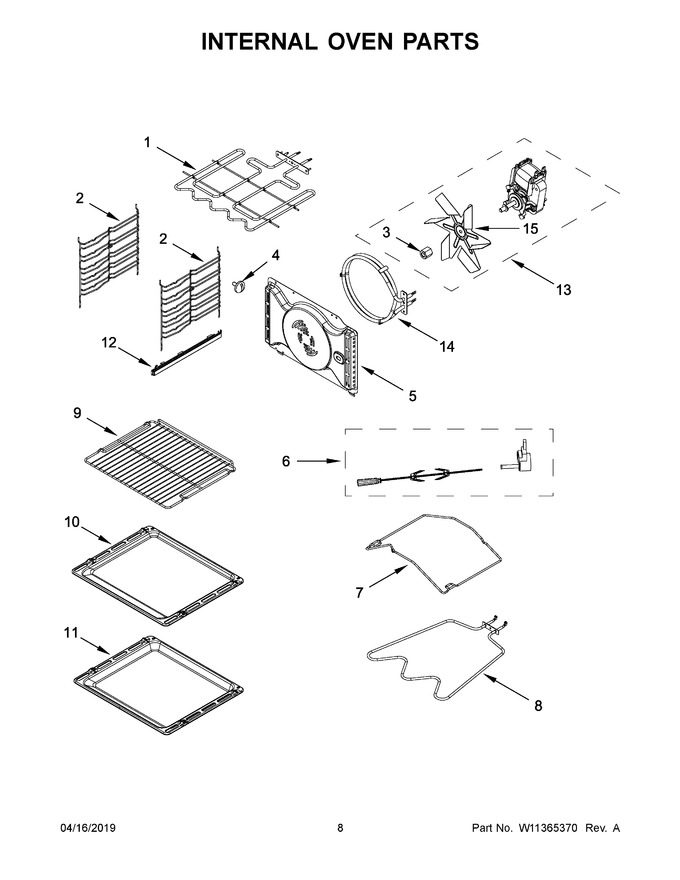

05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532965 | Element, Upper Grill |
|
$ 174.40 | |||||
| 2 | W11236920 | Grid, Oven Rack (Replaces: W10762741) |
|
$ 76.09 | |||||
| 3 | W11260216 | Nut (Replaces: W11259452) |
|
- | |||||
| 4 | W10519022 | Screw, Grid |
|
$ 11.95 | |||||
| 5 | W10518390 | Baffle, Convection Fan |
|
- | |||||
| 6 | W10519017 | Kit, Motor And Spit Rotisserie |
|
- | |||||
| 7 | W10519018 | Rack, Rotisserie Spit Support |
|
$ 95.09 | |||||
| 8 | W11237289 | Element, Lower 1150 Watts (Replaces: W10551720) |
|
Immediately | $ 147.95 | ||||
| 9 | W11236918 | Rack, Oven (Replaces: W10635612) |
|
Immediately | $ 37.67 | ||||
| 10 | W11259043 | Tray, Baking (Replaces: W10674831) |
|
- | |||||
| 11 | W11259044 | Tray, Deep (Replaces: W10674830) |
|
- | |||||
| 12 | W11259045 | Kit, Sliding Rail (left And Right) (Replaces: W10540544) |
|
$ 202.91 | |||||
| 13 | W10517945 | Motor, Fan Convection |
|
$ 62.87 | |||||
| 14 | W11237287 | Element, Convection (Replaces: W10368831) |
|
- | |||||
| 15 | W11260215 | Blade, Fan (Replaces: W11259450) |
|
$ 120.99 |
