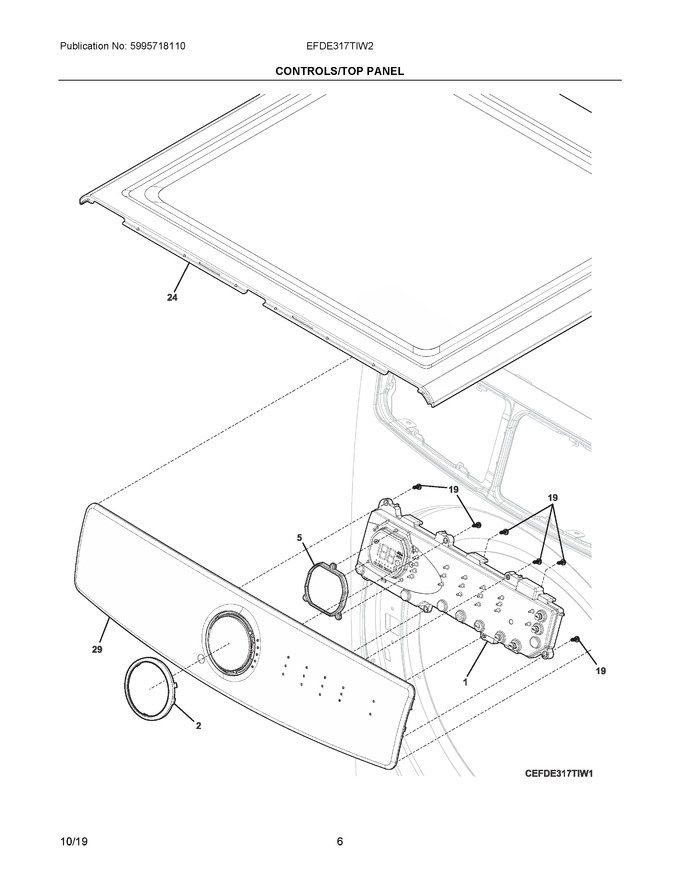

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304521515		Board Assembly, Ui Linear, W/housing-screw			Immediately	$ 289.17
2	5304505044		Trim, Ring, Chrome				$ 38.26
5	5304505045		Seal, Display Area		Appelez-nous	-
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304505081		Top Panel, White				$ 227.48
29	5304510126		Console Assembly, W/overlay				$ 155.14
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	5304510128		Harness, Wiring, Main				$ 186.17
NI	137150200		Terminal Block Kit, Main				$ 31.90
