SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram

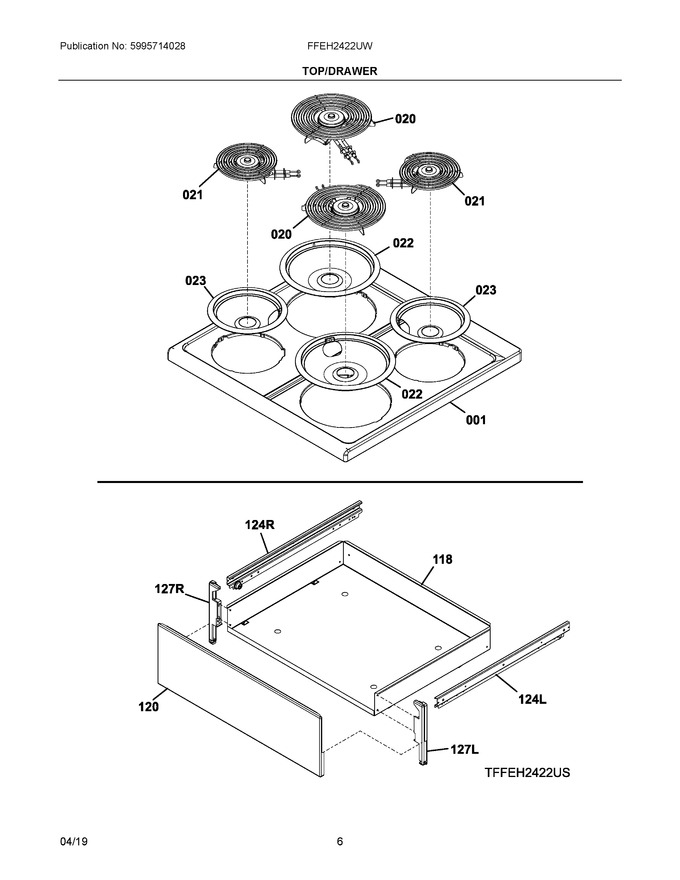

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A02480703		Cook Top, White			Immediately	$ 226.09
20	A13197402		Element, Surface Heat, 150mm		Appelez-nous	-
21	5304516159		Element, Surface Heat, 190mm   (Replaces: A13197401)			Immediately	$ 78.12
22	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 12.53
23	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 14.64
118	342175101		Drawer, Tray				$ 103.16
120	342174603		Panel, Drawer Front, White				$ 120.07
124L	342817707		Glide, Drawer, Lh			Immediately	$ 37.37
124R	342817708		Glide, Drawer, Rh			Immediately	$ 41.16
127L	A14042601		Support, Drawer, Lh				$ 21.54
127R	A14042602		Support, Drawer, Rh				$ 21.58
NI	342583401		Holder, Hob		Appelez-nous	-
NI	342485201		Bolt, Burner Support, M4x9 Ph		Appelez-nous	-
NI	A15216401		Plug, Button, Drawer		Appelez-nous	-
NIA	342553001		Wheel, Drawer, Back			Immediately	$ 10.72
NIA	356520607		Seal, Cooktop				$ 53.64
NIB	342553101		Wheel, Drawer, Front			Immediately	$ 10.62
NIC	342557201		Axle, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
