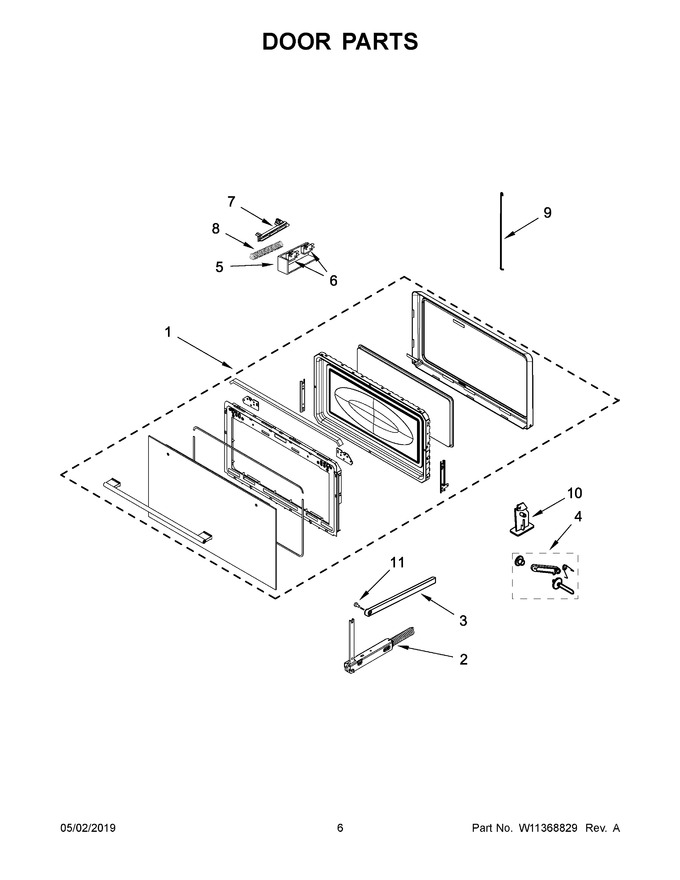

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10721486 | Assembly, Door (stainless) |
|
$ 357.48 | |||||
| 2 | W11101061 | Hinge, Door |
|
$ 31.34 | |||||
| 3 | W11214480 | Arm, Sliding (Replaces: 461967750483) |
|
$ 86.18 | |||||
| 4 | WPW10128850 | Pin, Damper (Replaces: 251968600013) |
|
Immediately | $ 121.78 | ||||
| 5 | W11214928 | Holder, Switch (Replaces: W10876593) |
|
$ 30.91 | |||||
| 6 | W10211972 | Switch (Replaces: 461967848881) |
|
Immediately | $ 47.16 | ||||
| 7 | WPW10120235 | Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 6.27 | ||||
| 8 | W11715912 | Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 6.44 | ||||
| 9 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 61.97 | |||||
| 10 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 13.30 | ||||
| 11 | WPW10128850 | Bushing (Replaces: 461967510191) |
|
Immediately | $ 121.78 |
