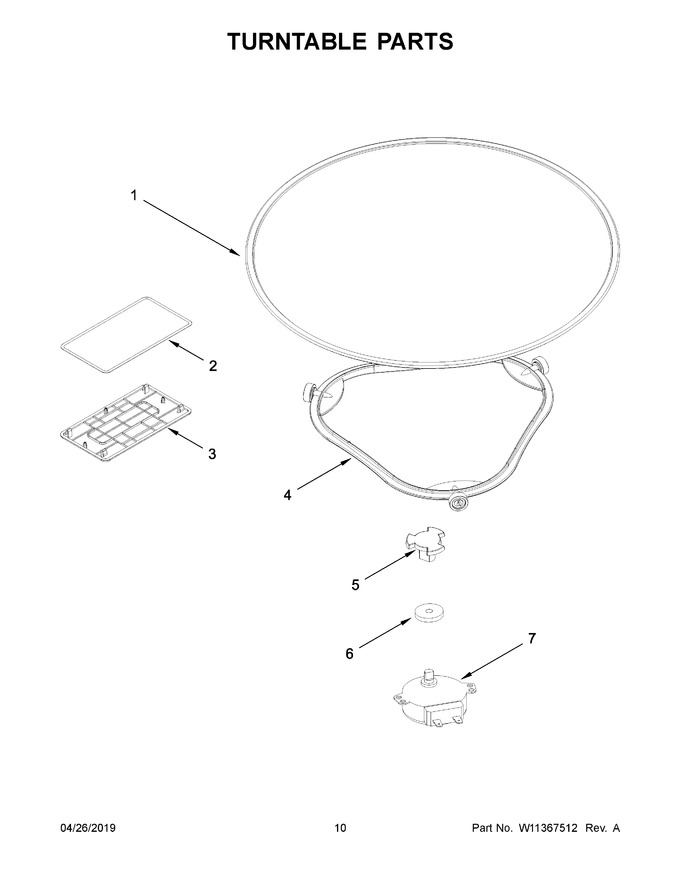

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11367904 | Turntable (Replaces: W11255440) |
|
Immediately | $ 65.60 | ||||
| 2 | W11126541 | Seal, Waveguide |
|
$ 20.14 | |||||
| 3 | W11193296 | Cover, Waveguide |
|
$ 69.99 | |||||
| 4 | W11213915 | Ring, Turntable (Replaces: W11096340) |
|
Immediately | $ 64.52 | ||||
| 5 | W11096343 | Driver, Turntable |
|
$ 75.11 | |||||
| 6 | W11096347 | Seal, Waterproof |
|
$ 12.91 | |||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 41.14 |
