01 - Cover Sheet
02 - Control Panel Parts
03 - Cabinet Parts
04 - Door Parts
05 - Top Venting Parts
06 - Oven Interior Parts
07 - Installation Parts
SELECT A DIAGRAM
New Model Search:

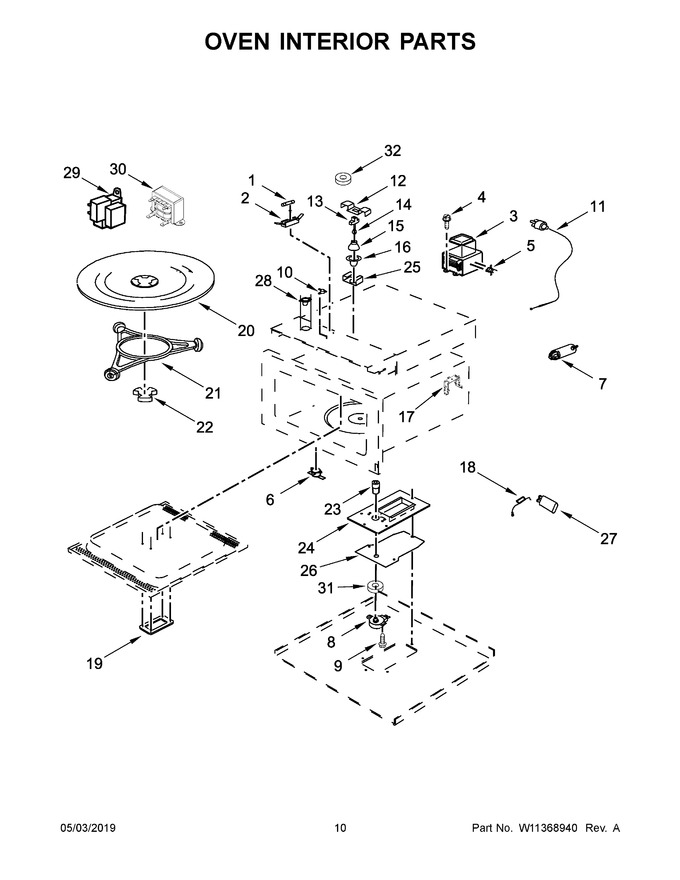

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11188752 | Fuse (Replaces: 241908600053) |
|
Immediately | $ 15.63 | ||||
| 2 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 74.84 | |||||
| 3 | W11409822 | Magnetron (Replaces: W10776925) |
|
$ 297.30 | |||||
| 4 | 461967825061 | Screw |
|
- | |||||
| 5 | WP4375079 | Thermostat, Magnetron (Replaces: 4375079) |
|
$ 78.44 | |||||
| 6 | W10141630 | Thermostat |
|
Immediately | $ 17.01 | ||||
| 7 | 461964885341 | Filter, Noise |
|
$ 108.92 | |||||
| 8 | W10911403 | Motor, Turntable (Replaces: 461967848971) |
|
Immediately | $ 105.78 | ||||
| 9 | 461967825321 | Screw |
|
$ 10.40 | |||||
| 10 | W11676348 | Thermostat, Cavity (Replaces: 8205659) |
|
$ 38.05 | |||||
| 11 | W10549524 | Cord, Power (Replaces: 461967847092) |
|
- | |||||
| 12 | W10474015 | Spring, Lamp Holder |
|
- | |||||
| 13 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 66.70 | |||||
| 14 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 29.00 | ||||
| 15 | 423107022541 | Reflector |
|
$ 73.63 | |||||
| 16 | W11193483 | Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 89.85 | ||||
| 17 | 461967009212 | Holder, Capacitator |
|
- | |||||
| 18 | W11256462 | Diode, High Voltage (Replaces: 461964697812) |
|
Immediately | $ 29.88 | ||||
| 19 | W11087199 | Cover, Inlet (Replaces: 461967749842) |
|
Immediately | $ 20.01 | ||||
| 20 | W11373838 | Turntable, Glass (Replaces: W11340343) |
|
Immediately | $ 70.65 | ||||
| 21 | W10422379 | Assembly, Turntable Ring |
|
$ 52.62 | |||||
| 22 | W11223840 | Driver, Turntable (Replaces: 461967745121) |
|
$ 23.94 | |||||
| 23 | W11126044 | Shaft, Turntable Drive (Replaces: 461967750791) |
|
$ 25.91 | |||||
| 24 | 461967008471 | Holder, Turntable Motor |
|
$ 73.63 | |||||
| 25 | W11440819 | Clip, Spring (Replaces: 461967010591) |
|
$ 19.71 | |||||
| 26 | 461967451191 | Cover, Motor |
|
- | |||||
| 27 | W10850446 | Capacitor (Replaces: W10781465) |
|
$ 167.89 | |||||
| 28 | W10871220 | Sensor, Humidity (Replaces: 461967847491) |
|
$ 158.94 | |||||
| 29 | W11672685 | Transformer, High Voltage (120v) (Replaces: W10776767) |
|
- | |||||
| 30 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 309.33 | ||||
| 31 | W10769146 | Ring, Rubber |
|
- | |||||
| 32 | W10769147 | Sealing, Lamp |
|
Immediately | $ 20.99 |
