SELECT A DIAGRAM
New Model Search:

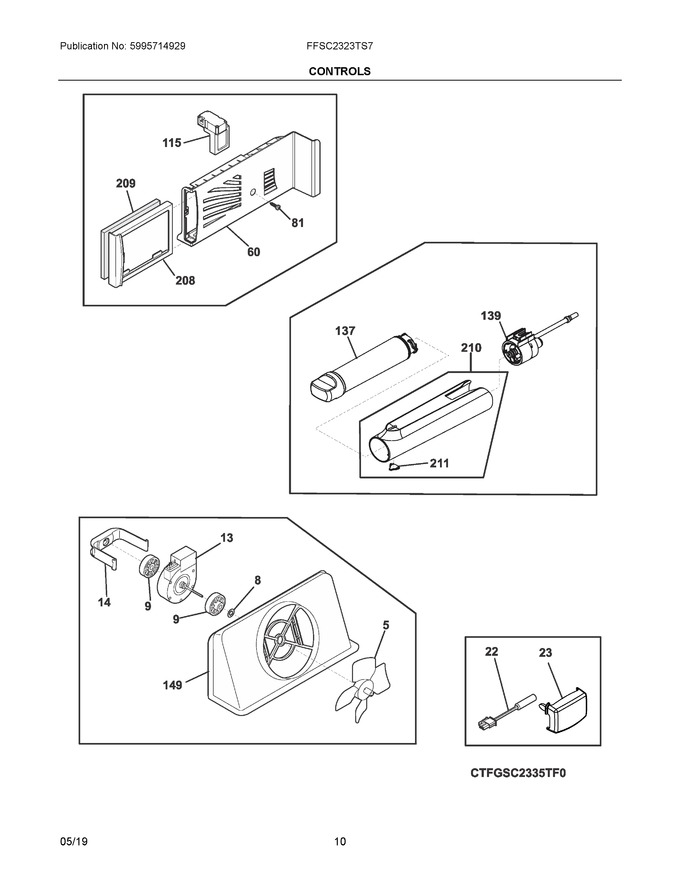

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing, Motor Mounting |
|
$ 66.63 | |||||
| 13 | 242290001 | Motor-blower |
|
$ 156.47 | |||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241512901 | Cover-sensor |
|
$ 83.49 | |||||
| 60 | 242286101 | Housing-diffuser & Air Filter |
|
$ 43.95 | |||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 241853801 | Damper Assy, W/seal |
|
$ 157.35 | |||||
| 137 | 807946701 | Filter Assembly, Puresource U-ii, W/cap |
|
- | |||||
| 139 | 5304522623 | Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve (Replaces: 807931801) |
|
Immediately | $ 64.53 | ||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 38.68 | |||||
| 208 | 241754301 | Sleeve, Air Filter, Front |
|
$ 38.28 | |||||
| 209 | EAFCBF | Filter, Air (Replaces: 242047804) |
|
Immediately | $ 27.64 | ||||
| 210 | 807747304 | Housing, Water Filter, W/drip Pad |
|
$ 35.42 | |||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| NIA | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| NIA | 242156301 | Insulation-air Duct |
|
- | |||||
| NIA | 241528304 | Seal, Foam, Evap Fan Assy |
|
- |
