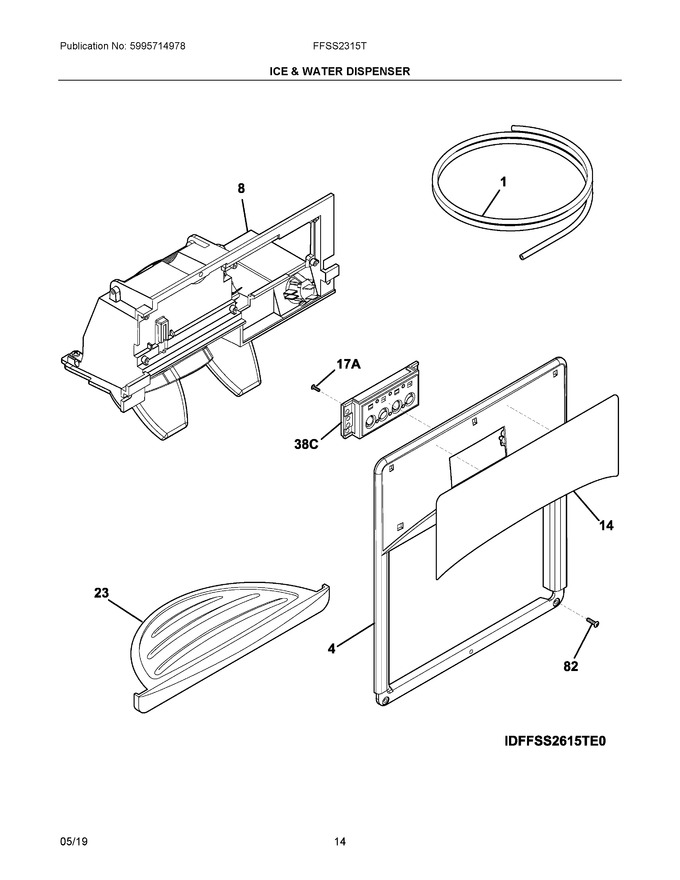

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 20.56 | ||||
| 4 | 241679003 | Cover-module, Black (Replaces: 5304433186) |
|
$ 75.02 | |||||
| 4 | 241679003 | Cover-module, Black |
|
$ 75.02 | |||||
| 8 | 240563638 | Module-dispenser, Black (Replaces: 240563633) |
|
$ 269.97 | |||||
| 14 | 240570237 | Label-module Cover Blk |
|
Immediately | $ 30.03 | ||||
| 23 | 241649003 | Drip Tray, Black |
|
$ 61.66 | |||||
| 82 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 17A | 5304433185 | Screw, Switch Mtg. |
|
- | |||||
| 38C | 5304525097 | Switch (Replaces: 241679101) |
|
$ 103.90 | |||||
| NI | 5303918596 | Kit, Dspenser Htr Ac |
|
$ 317.38 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door, Wtr Vlv To Door |
|
$ 19.13 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 | ||||
| NICA | 241873301 | Harness-wiring (Replaces: 241686001) |
|
$ 11.15 | |||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
