01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

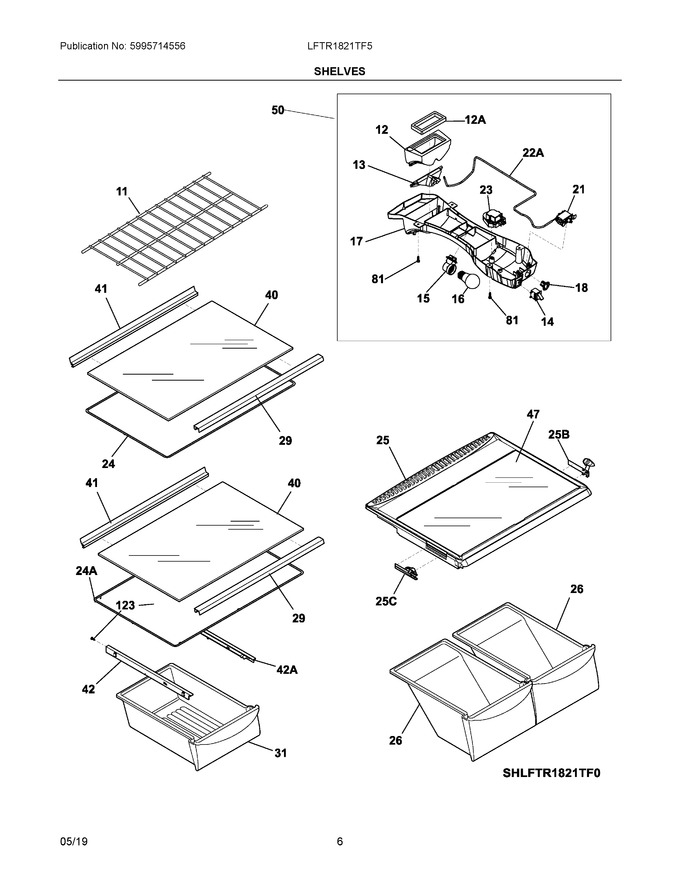

| 11 | 240358008 | Shelf, Freezer |
|
$ 91.80 | |||||
| 12 | 241542001 | Diffuser, Air, Top |
|
Immediately | $ 74.42 | ||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 5304503170 | Control Box |
|
$ 25.94 | |||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature |
|
Immediately | $ 72.31 | ||||
| 23 | 241705102 | Timer-defrost |
|
Immediately | $ 113.51 | ||||
| 24 | 240372409 | Frame, Sliding Shelf, Full Width |
|
$ 127.08 | |||||
| 25 | 240364787 | Cover-crisper Pan |
|
Immediately | $ 120.98 | ||||
| 26 | 240337103 | Pan-crisper, Clear, (2), No Graphics |
|
Immediately | $ 148.35 | ||||
| 29 | 240357704 | Trim-shelf, Front |
|
Immediately | $ 66.25 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear |
|
Immediately | $ 135.77 | ||||
| 40 | 240350620 | Glass-shelf, 23.78" X 16.34 |
|
Immediately | $ 140.90 | ||||
| 41 | 240561502 | Trim-shelf, Rear |
|
Immediately | $ 71.59 | ||||
| 42 | 240530601 | Track, Meat Pan Hanger, Lh |
|
Immediately | $ 65.98 | ||||
| 47 | 240350608 | Insert-pan Cover, 23.82" X 15.50", Glass |
|
Immediately | $ 45.50 | ||||
| 50 | 5304503170 | Control Box (Replaces: 5304504513) |
|
$ 25.94 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw, Hanger/rlr Mtg, 8-10 X 7/16 |
|
$ 14.89 | |||||
| 12A | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White |
|
$ 9.10 | |||||
| 24A | 240372410 | Frame, Sliding Shelf, Full Width, W/hanger Tabs |
|
$ 273.39 | |||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| 42A | 240530701 | Track, Meat Pan Hanger, Rh |
|
Immediately | $ 65.98 | ||||
| NI | 5304512694 | Label-energy Doe |
|
- | |||||
| NIA | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 80.09 | ||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.09 | |||||
| NIA | 5304455649 | Screw-timer Mtg, Pan Hd, 6-20 X 0.438 (Replaces: 5303001259) |
|
$ 17.01 |
