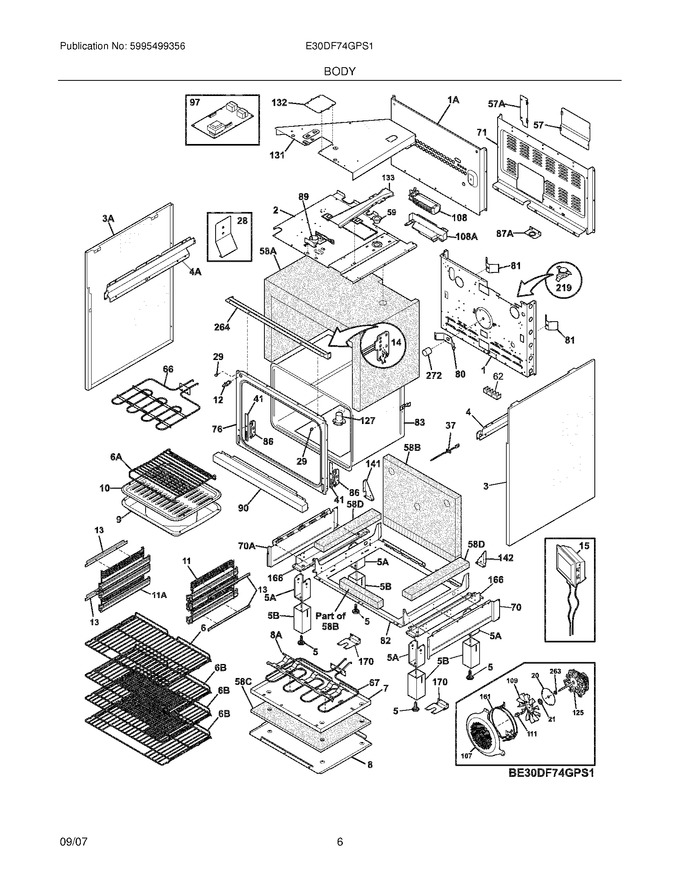

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Maintop
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259220 | Back,main |
|
$ 88.31 | |||||
| 2 | 318258922 | Shield,insulation ,upper |
|
- | |||||
| 3 | 318352700 | Panel,side ,stainless ,lh |
|
- | |||||
| 4 | 318356002 | Panel,upper Side ,rh |
|
- | |||||
| 5 | 318175506 | Screw,leveling |
|
$ 38.28 | |||||
| 6 | 318240102 | Shelf,oven ,fixed |
|
$ 189.53 | |||||
| 7 | 318297303 | Box,bake Element (Replaces: 318297302) |
|
$ 125.84 | |||||
| 8 | 318359500 | Panel,service |
|
$ 140.09 | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 11 | 318240014 | Glide & Support Assy,oven Shelves ,rh |
|
$ 440.48 | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 13 | 318603913 | Bracket,ladder Mtg. ,(4) |
|
$ 66.99 | |||||
| 14 | 318903401 | Switch,rack Sensing |
|
- | |||||
| 15 | 318241008 | Lamp,oven ,(2) ,halogen (Replaces: 318241002) |
|
Immediately | $ 128.93 | ||||
| 20 | 318389400 | Plate,retainer |
|
$ 16.21 | |||||
| 21 | 318389000 | Seal,ring |
|
$ 22.75 | |||||
| 28 | 318369301 | Bracket,side Panel ,(2) |
|
- | |||||
| 29 | 318147430 | Bumper,(2) (Replaces: 318147411) |
|
$ 18.95 | |||||
| 41 | 318366603 | Spacer,front Frame (Replaces: 318366601) |
|
- | |||||
| 57 | 318362600 | Panel,service |
|
- | |||||
| 59 | 318072577 | Duct,oven Vent |
|
$ 16.30 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 70 | 318302710 | Shield,insulation ,right ,(2) |
|
$ 26.30 | |||||
| 71 | 318300903 | Panel,cover |
|
- | |||||
| 76 | 318056232 | Front,oven |
|
$ 108.05 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258715 | Shield,insulation ,lower |
|
- | |||||
| 83 | 318261428 | Liner,oven Assy |
|
- | |||||
| 86 | 318241406 | Receptacle,hinge ,(2) |
|
$ 75.83 | |||||
| 90 | 318355000 | Trim,bottom ,stainless |
|
$ 237.26 | |||||
| 97 | 316455704 | Board,power ,relay |
|
Immediately | $ 453.42 | ||||
| 107 | 318906601 | Cover,fan |
|
$ 202.63 | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318357001 | Adapter,vent Tube |
|
$ 50.66 | |||||
| 131 | 318272901 | Box,vent |
|
$ 59.01 | |||||
| 132 | 318003000 | Plate,shield |
|
- | |||||
| 133 | 318347800 | Chimney |
|
- | |||||
| 141 | 318368400 | Bracket,reinforcement ,rh |
|
- | |||||
| 142 | 318368401 | Bracket,reinforcement ,lh |
|
- | |||||
| 166 | 318352501 | Bracket,leveling Leg ,(2) ,reinforcement |
|
$ 57.91 | |||||
| 170 | 318335701 | Anti-tip & Accessories |
|
$ 42.89 | |||||
| 263 | 316008401 | Washer,flat (Replaces: 316136500) |
|
$ 11.34 | |||||
| 264 | 318257723 | Trim,oven ,black ,front |
|
$ 67.46 | |||||
| 272 | 318249403 | Tube,protector |
|
- | |||||
| 11A | 318240015 | Glide & Support Assy,oven Shelves ,lh |
|
$ 400.15 | |||||
| 1A | 318353100 | Panel,back ,upper |
|
- | |||||
| 3A | 318352701 | Panel,side ,stainless ,rh |
|
- | |||||
| 4A | 318356003 | Panel,upper Side ,lh |
|
- | |||||
| 57A | 318394600 | Panel,service |
|
- | |||||
| 58A | 318386100 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318285079 | Insulation,oven Back |
|
- | |||||
| 58C | 318294912 | Insullation,bake Element |
|
$ 97.17 | |||||
| 58D | 318372001 | Insulation,door ,20.5 X 2.375 ,(2) |
|
- | |||||
| 5A | 318368800 | Bracket,leveling Leg ,(4) |
|
$ 43.20 | |||||
| 5B | 318352400 | Cover,leveling Leg ,(4) |
|
$ 174.61 | |||||
| 6A | 318365800 | Rack,broiler Pan |
|
$ 52.46 | |||||
| 6B | 318345404 | Shelf,oven ,extendable ,(3) |
|
- | |||||
| 70A | 318302711 | Shield,insulation ,left ,(2) |
|
$ 26.51 | |||||
| 87A | 318111805 | Plate,cord Set Mtg |
|
- | |||||
| 8A | 318313601 | Bracket,bake Element |
|
$ 71.45 | |||||
| F108 | 318073028 | Motor,blower (Replaces: 318073018) |
|
Immediately | $ 271.69 | ||||
| F108 | 318251300 | Bracket,fan Support |
|
$ 54.60 | |||||
| F125 | 5304467898 | Motor,fan (Replaces: 316415800) |
|
Immediately | $ 225.67 | ||||
| F161 | 318255511 | Element,convection ,2500 W (Replaces: 318255505) |
|
Immediately | $ 110.20 | ||||
| F219 | 318003631 | Thermostat,safety ,(2) |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F66 | 318255806 | Element,broil ,4000w |
|
$ 282.09 | |||||
| F67 | 318254916 | Element,bake ,2500w ,8 Pass (Replaces: 318254903) |
|
Immediately | $ 204.47 | ||||
| F89 | 318261229 | Motor,latch Assy (Replaces: 318261211) |
|
Immediately | $ 93.62 | ||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 08002868 | Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box |
|
$ 14.18 | |||||
| NI | 5304461333 | Screw,10-32 X 17/32 ,(4) |
|
Immediately | $ 13.46 | ||||
| NI | 318370338 | Wriring Harness,latch |
|
- | |||||
| NI | 5303325978 | Screw,shoulder Head ,8-18 X 1/2 |
|
- | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 5303212739 | Plate-ground Strap |
|
- | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| NI | 318165800 | Spacer |
|
$ 17.72 | |||||
| NI | 3201861 | Screw,6 X 0.375 ,(4) |
|
$ 0.76 | |||||
| NI | 318370366 | Wriring Harness,main |
|
$ 129.73 | |||||
| NI | 318231859 | Harness,wiring ,power |
|
$ 30.87 | |||||
| NI | 318235301 | Connector Assy.,w/3 Lugs ,& Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(2) |
|
$ 15.17 |
