SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram

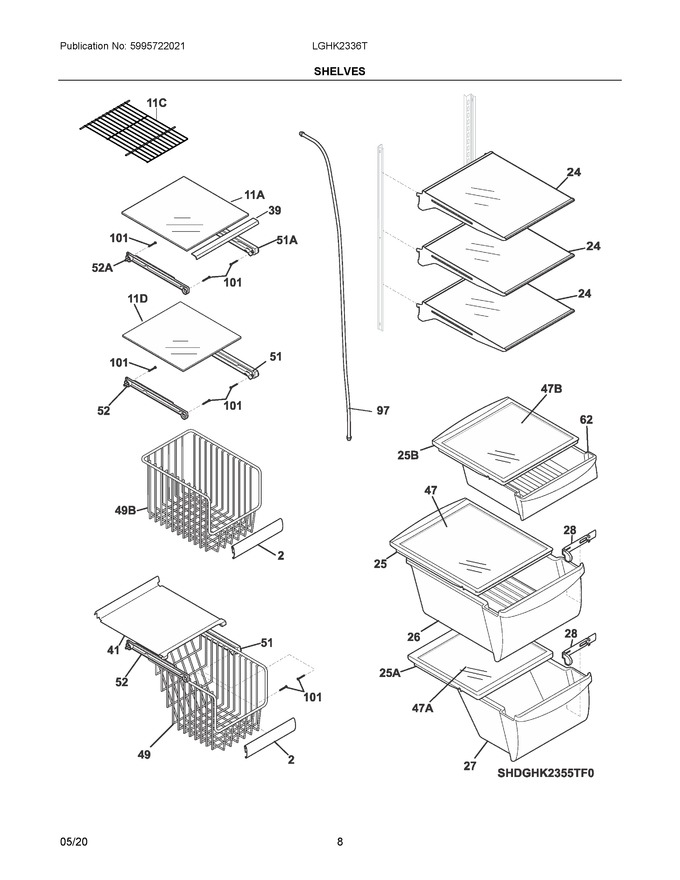

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510611		Trim-basket				$ 21.27
24	5304512783		Shelf-"spill-safe", Cantilever, Fixed				$ 220.69
25	240599301		Cover-crisper Pan, Upper			Immediately	$ 94.38
26	240351061		Pan-crisper, Upper			Immediately	$ 110.01
27	240351240		Pan-crisper, Lower				$ 203.45
28	240362201		Control-humidity				$ 69.46
39	240367608		Trim-shelf, Front				$ 21.99
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	241515001		Basket-sliding				$ 188.19
51	241514501		Hanger-basket, Rh				$ 73.71
52	241514601		Hanger-basket, Lh				$ 76.55
62	241974604		Pan-meat   (Replaces: 241974601)				$ 131.60
97	242220119		Tube-water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
11A	240443358		Shelf-freezer, Glass, Upper				$ 97.07
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	241711213		Shelf-freezer, Glass, Lower   (Replaces: 240443357)				$ 86.45
25B	240599803		Frame-deli Cover, Upper			Immediately	$ 90.55
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443391		Insert-pan Cover, Glass			Immediately	$ 123.62
49B	241514901		Basket-sliding, Upper, Full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass, Rh				$ 63.79
52A	241514801		Hanger-shelf Glass, Lh				$ 343.75
NI	240362101		Clip-slide, Cover				$ 47.03
NI	5304513673		Energy Guide		Appelez-nous	-
NI	240349801		Clip-slide, Pan				$ 20.48
NIA	241781601		Seal-return Air				$ 9.10
NIA	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63

    View Diagram in Separate Window       Print Part List
