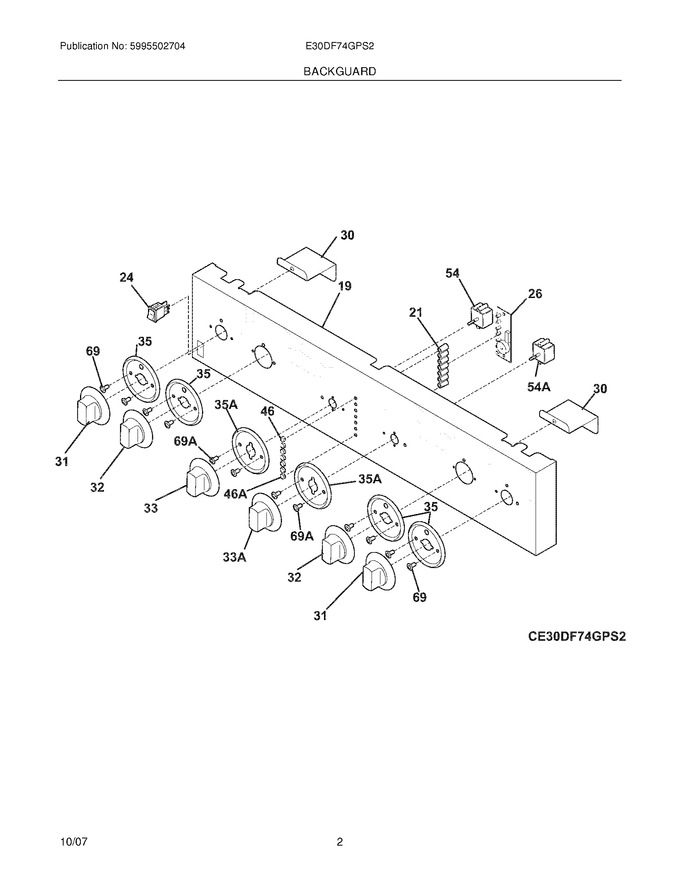

03 - Backguard
05 - Burner
07 - Body
09 - Top
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318285722 | Panel,control ,stainless |
|
- | |||||
| 21 | 318389500 | Retainer,lens |
|
$ 36.14 | |||||
| 30 | 318377000 | Support,control Panel ,(2) |
|
- | |||||
| 31 | 318242225 | Knob,control ,(2) |
|
$ 223.28 | |||||
| 32 | 318242226 | Knob,control ,dual ,(2) |
|
$ 216.55 | |||||
| 33 | 318242230 | Knob,selector |
|
$ 129.68 | |||||
| 35 | 318251911 | Skirt,(4) |
|
$ 73.56 | |||||
| 46 | 318044501 | Lens,indicator Light ,blue ,(5) |
|
$ 7.09 | |||||
| 69 | 5303300265 | Screw,8-18 X 1/2 ,(4) |
|
$ 15.17 | |||||
| 33A | 318242231 | Knob,control ,oven |
|
$ 92.14 | |||||
| 35A | 318251912 | Skirt,(2) |
|
$ 75.08 | |||||
| 46A | 318228310 | Lens,indicator Light ,(2) |
|
Immediately | $ 22.91 | ||||
| 69A | 5304453707 | Screw,control Mtg. |
|
Immediately | $ 15.92 | ||||
| F24 | 5308015487 | Switch,oven Light ,rocker |
|
$ 61.43 | |||||
| F26 | 5304452799 | Board,indicator Light ,(2) ,led |
|
$ 333.46 | |||||
| F54 | 5304452797 | Control,oven Selector |
|
Immediately | $ 381.46 | ||||
| F54A | 5304452798 | Control,oven Temp. |
|
Immediately | $ 376.15 | ||||
| FNI | 318370352 | Wriring Harness,timer ,to Relay Board |
|
- | |||||
| FNI | 318370353 | Wriring Harness,relay Board ,to Display |
|
- | |||||
| NI | 318163602 | Cleaner,stainless Steel |
|
$ 26.51 |
