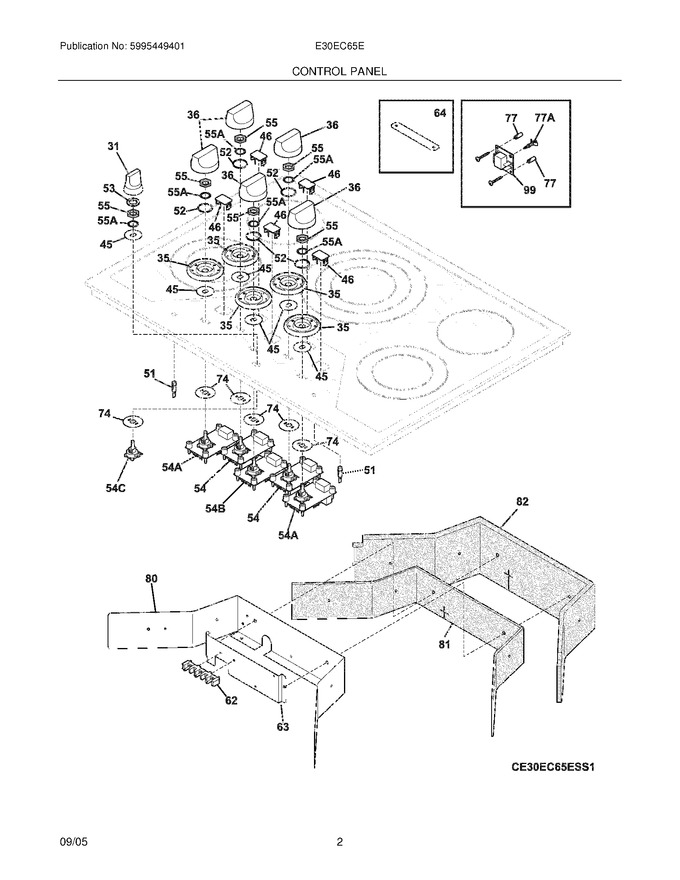

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	318314700		Knob,selector ,black		Appelez-nous	-
35	318251903		Skirt,(5)		Appelez-nous	-
36	318319101		Knob,control ,black ,(5)				$ 86.63
45	318146012		Bushing,switch ,(6)				$ 15.60
46	318319001		Lens,indicator Light ,green ,(5)				$ 48.57
52	318337100		Gasket,o`ring ,(5)				$ 14.41
53	318339200		Washer,flat ,nylon		Appelez-nous	-
55	316247700		Nut,hex Control Mtg ,(5)				$ 18.20
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
63	318310600		Bracket,terminal Block		Appelez-nous	-
64	318311400		Plate,hidden Wires		Appelez-nous	-
74	318146011		Bushing,switch		Appelez-nous	-
77	316247900		Spacer,power Board ,(2)				$ 44.65
80	318303400		Deflector,switch		Appelez-nous	-
81	318106052		Insulation,w/aluminum Foil		Appelez-nous	-
82	318285089		Insulation		Appelez-nous	-
99	316435702		Board,power Supply				$ 101.38
55A	316247800		Washer,lock ,(5) ,control Mtg				$ 18.20
77A	316114100		Spacer,(2)				$ 60.96
F51	318337200		Light,indicator ,blue ,(2)				$ 95.24
F54	316441830		Control,electronic ,single Element ,(2)				$ 314.82
F54A	316441831		Control,electronic ,dual Element ,(2) ,w/potentiometer				$ 325.29
F54B	316441832		Control,electronic ,triple Element ,w/potentiometer				$ 347.67
F54C	318310000		Switch,selector				$ 312.01
NI	318083038		Harness,wiring ,to Controls		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304449778		Screw,bracket Mtg. ,8 X 1/2`` ,(2)		Appelez-nous	-
NI	5304410665		Screw,10-32 X 5/8 ,(8)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	318083027		Harness,wiring ,limiter		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(3)		Appelez-nous	-
