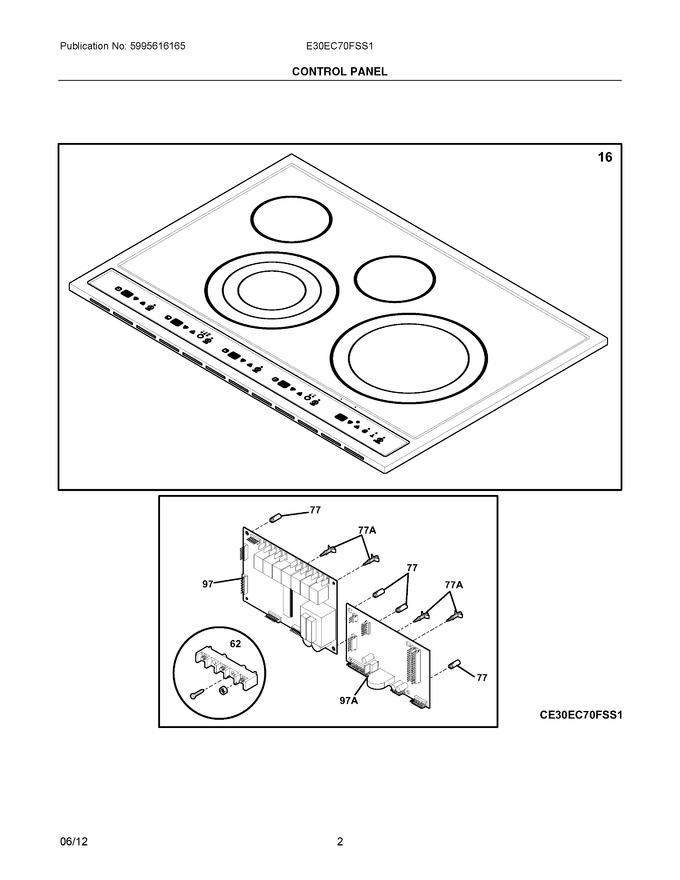

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318282530 | Main Top Assy, Glass/steel, Black/stainless, W/touch Control |
|
$ 739.19 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 77 | 316247900 | Spacer, Power Board, (4) |
|
$ 44.65 | |||||
| 97 | 316442112 | Board, Power, Relay |
|
Immediately | $ 328.64 | ||||
| 77A | 316114100 | Spacer, (2) |
|
$ 60.96 | |||||
| 97A | 316442041 | Board, Power, Uib |
|
- | |||||
| NI | 318078558 | Box & Wires Assy |
|
- | |||||
| NI | 318083051 | Harness, Wiring, Interface |
|
- | |||||
| NI | 5304400192 | Retainer Wire |
|
- | |||||
| NIA | 316205500 | Nut, 10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NIB | 5303323139 | Screw, 10-24 X 0.906 |
|
$ 13.46 |
