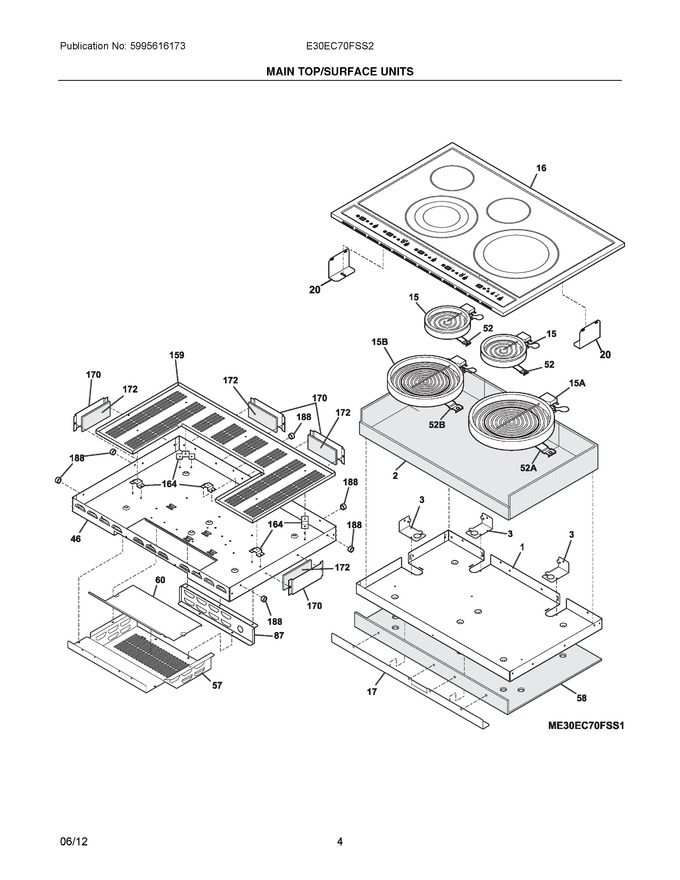

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318354110 | Shield, Heat |
|
- | |||||
| 2 | 318344530 | Insulation, Elements |
|
- | |||||
| 3 | 318371400 | Cover, Deflector |
|
- | |||||
| 15 | 318178110 | Element, Surface, 6", 1200 W, (2) (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| 16 | 318282530 | Main Top Assy, Glass/steel, Black/stainless, W/touch Control |
|
$ 739.19 | |||||
| 17 | 318371500 | Bracket, Insulation |
|
- | |||||
| 20 | 318121906 | Bracket, Retainer |
|
- | |||||
| 46 | 318354010 | Box, Burner |
|
- | |||||
| 52 | 318122006 | Spring, Element Mtg, Small |
|
$ 66.25 | |||||
| 57 | 318354300 | Box, Service |
|
- | |||||
| 58 | 318371300 | Insulation |
|
- | |||||
| 60 | 318371600 | Deflector, Air |
|
- | |||||
| 87 | 318354401 | Bracket, Cable |
|
- | |||||
| 159 | 318371700 | Deflector, Heat |
|
- | |||||
| 164 | 318252901 | Support, Box, (6) |
|
- | |||||
| 170 | 318124913 | Screen, Thermal, (4) |
|
- | |||||
| 172 | 318344521 | Insulation, Screen, (4) |
|
- | |||||
| 188 | 318531702 | Spacer, (6) (Replaces: 318014110) |
|
$ 9.93 | |||||
| 15A | 316282100 | Element, Surface, 6/9, 1700/2700w, Dual Radiant (Replaces: 318198934) |
|
Immediately | $ 249.27 | ||||
| 15B | 318297804 | Element, Surface, Triple, 800/900/1000 |
|
$ 345.24 | |||||
| 52A | 318122011 | Spring, Element Mtg, 1200w/1800w |
|
$ 62.14 | |||||
| 52B | 318122010 | Spring, Element Mtg, 3000w |
|
$ 62.51 | |||||
| NI | 08016432 | Screw, Truss Head, 8-18 X 0.375 |
|
- | |||||
| NI | 5303300265 | Screw, 8-18 X 1/2, (2) |
|
$ 15.17 | |||||
| NI | 5303288566 | Screw, 8 X 1/4, (4) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NI | 5303307980 | Screw, 8-32 X 0.437, (4) |
|
Immediately | $ 14.18 | ||||
| NI | 134178901 | Screw, 8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 131202300 | Screw, 8 X 5/8, (6) (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| NI | 318199478 | Harness, Wiring, Main |
|
- | |||||
| NI | 318052533 | Ground Wire, W/terminal |
|
- | |||||
| NI | 5303323140 | Screw, Ground, 10-32 X 0.375 |
|
- | |||||
| NI | 318163602 | Cleaner, Stainless Steel |
|
$ 26.51 | |||||
| NI | 5303311306 | Screw, 8-18 X 0.375, (8) |
|
- |
