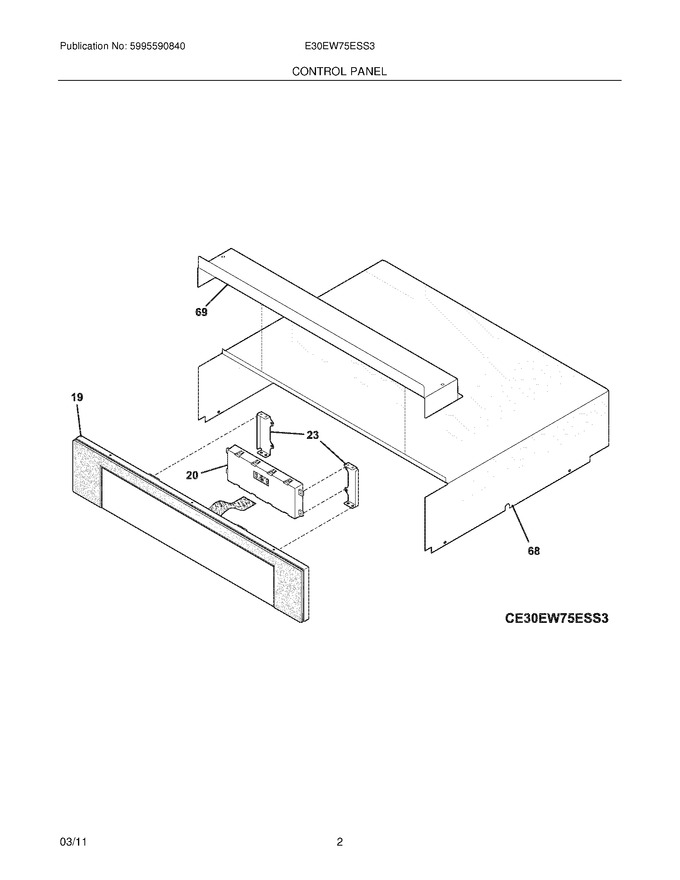

03 - Control Panel


05 - Body


07 - Door


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318244806		Control Panel,assembly ,w/stainless Trm				$ 2,181.22
23	318240801		Bracket,timer Mtg ,(2)		Appelez-nous	-
68	318237200		Housing,top/control		Appelez-nous	-
69	318237300		Shield,control		Appelez-nous	-
F20	316272222		Controller,electronic ,es500				$ 472.75
NI	5304443263		Screw,6-20 X 3/8 ,black				$ 10.92
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
