SELECT A DIAGRAM

01 - Cover

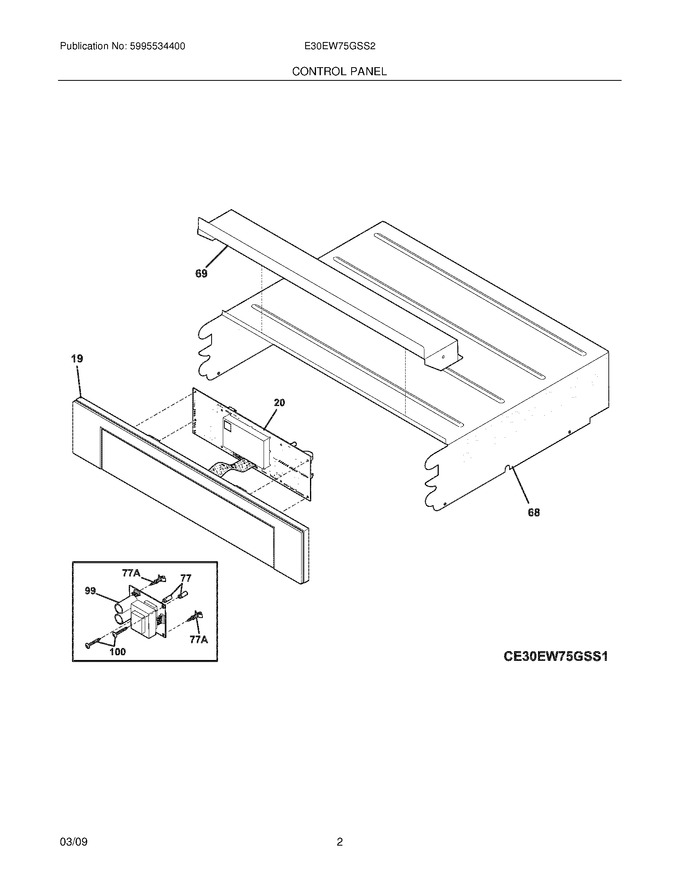

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	7318244834		Control Panel,assembly ,w/stainless Trm		Appelez-nous	-
68	7318237220		Housing,top/control		Appelez-nous	-
69	7318237320		Shield,control		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
100	75303297477		Screw,6-20 X 1 1/4		Appelez-nous	-
77A	7316114100		Spacer		Appelez-nous	-
F20	7316516550		Controller,electronic ,es560w2		Appelez-nous	-
F99	316535200		Board,power Supply ,8v ,(2)   (Replaces: 7316535200)				$ 408.36
FNI	7318532112		Harness,wiring ,communication ,10 Connectors		Appelez-nous	-
NI	7316524400		Screw,control Mtg ,6-32 X .25 ,(5)		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
