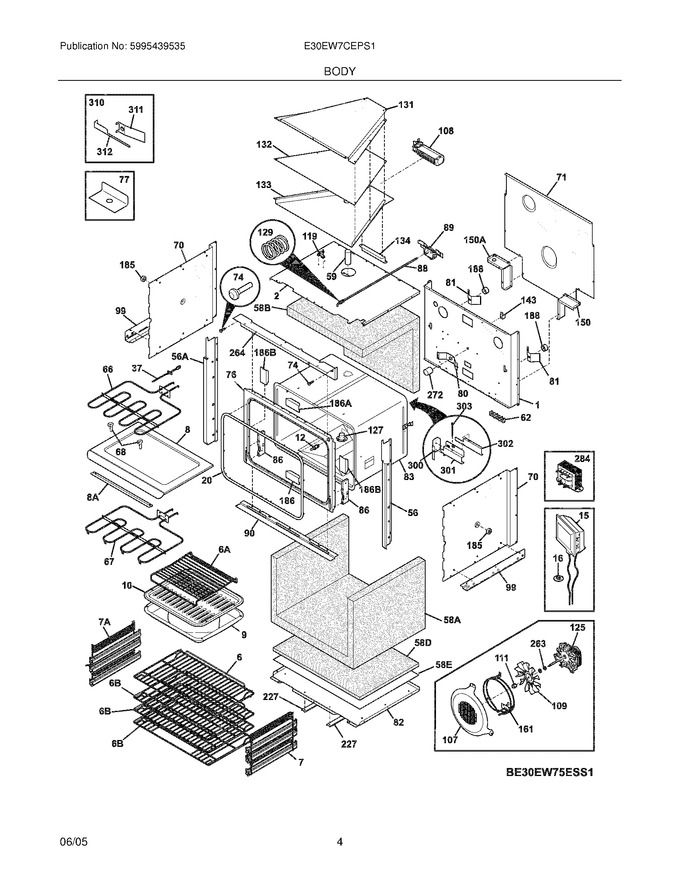

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066412		Panel,main Back		Appelez-nous	-
2	318236400		Shield,oven Top		Appelez-nous	-
6	318240100		Shelf,oven ,fixed		Appelez-nous	-
7	318240002		Glide & Support Assy,oven Shelves ,rh		Appelez-nous	-
8	318262002		Cover,element				$ 253.07
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
15	318241000		Lamp,oven ,(2) ,halogen				$ 160.23
16	318283500		Bushing,halogen Lamp ,(8)				$ 11.97
20	318239000		Gasket,oven Door		Appelez-nous	-
56	318236500		Trim,side ,rh		Appelez-nous	-
59	318072547		Tube,vent ,oven		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	318255807		Element,broil ,4000w   (Replaces: 318255800)				$ 323.19
67	318254906		Element,bake ,3400w ,8 Pass   (Replaces: 318254901)			Immediately	$ 259.36
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
70	318236300		Shield,insulation ,(2)		Appelez-nous	-
71	318236702		Panel,wire Shield		Appelez-nous	-
74	318283600		Bumper				$ 36.65
76	318056211		Front,oven		Appelez-nous	-
77	318243600		Bracket,stopping		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318072310		Shield,oven Bottom		Appelez-nous	-
83	318236003		Liner,oven Assy				$ 379.89
86	318241406		Receptacle,hinge ,(2)   (Replaces: 318241405)				$ 75.83
88	318250202		Rod,latch ,w/bushing		Appelez-nous	-
89	318095949		Motor,latch Assy ,w/brkt & Switch				$ 127.16
90	318236601		Gutter		Appelez-nous	-
99	318055425		Support,adjustable ,(2)		Appelez-nous	-
107	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
107	318219402		Cover,fan		Appelez-nous	-
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
129	5303311164		Spring				$ 18.95
131	318237401		Channel,air ,upper		Appelez-nous	-
132	318237600		Divider,air Channel		Appelez-nous	-
133	318237500		Channel,air ,lower		Appelez-nous	-
134	318237700		Support,air Channel		Appelez-nous	-
143	318172904		Support,wire/glass		Appelez-nous	-
150	318072212		Bracket,support ,rh ,access Cover		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(4)   (Replaces: 318014700)				$ 12.76
186	318236900		Bracket,oven ,lower		Appelez-nous	-
188	318531702		Spacer,(4)   (Replaces: 318014110)				$ 9.93
227	318240702		Bracket,reinforcement ,(2)		Appelez-nous	-
263	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 11.34
264	318239101		Trim,vent		Appelez-nous	-
272	318249400		Tube,protector		Appelez-nous	-
284	318244500		Transformer				$ 302.24
300	318089801		Switch,door,oven Light				$ 77.03
301	318234600		Support,tongue Mtg				$ 42.47
302	318278200		Tongue,door Switch ,w/plate				$ 35.65
303	318228400		Pin,cotter		Appelez-nous	-
310	5304435864		Kit,cabinet Mtg ,w/instructions				$ 117.60
311	318246000		· Bracket,cabinet Mtg		Appelez-nous	-
312	318246703		Tool,cabinet Bracket ,lh				$ 12.13
312	318246702		Tool,cabinet Bracket ,rh				$ 12.13
56A	318236501		Trim,side ,lh				$ 58.14
58A	318133788		Insulation,oven Wrapper ,bottom/sides		Appelez-nous	-
58B	318133787		Insulation,oven Back/top		Appelez-nous	-
58D	318133789		Insulation,1/2`` Thick ,26.75 X 19		Appelez-nous	-
58E	318235701		Panel,insulation ,26.75 X 18 ,aluminum		Appelez-nous	-
6A	318219500		Rack,broiler Pan		Appelez-nous	-
6B	318240200		Shelf,oven ,extendable		Appelez-nous	-
7A	318240003		Glide & Support Assy,oven Shelves ,lh		Appelez-nous	-
8A	318318600		Bracket,element ,hidden Bake				$ 37.17
F108	318073017		Motor,blower				$ 401.73
F119	318004900		Switch,thermal				$ 60.25
F12	808136601		Switch,light   (Replaces: 318089917)			Immediately	$ 44.04
F125	318142100		Washer,motor ,rh ,convection				$ 12.39
F125	5303316994		Insulation,3.81 X 3.13		Appelez-nous	-
F125	316136300		Motor,fan				$ 42.95
F150	318072213		Bracket,support ,lh ,access Cover		Appelez-nous	-
F161	318255511		Element,convection ,2500 W   (Replaces: 318255502)			Immediately	$ 110.20
F186	318237100		Bracket,oven ,side ,(2)		Appelez-nous	-
F186	318237000		Bracket,oven ,upper		Appelez-nous	-
F188	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
F284	318302000		Spacer,cork & Rubber ,(2)		Appelez-nous	-
F311	5304438005		· Screw,6 X 1 ,black				$ 9.93
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
NI	318167300		Clip,rod				$ 2.84
NI	318120711		Switch				$ 87.68
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	318078539		Box & Wires Assy		Appelez-nous	-
NI	318231715		Harness,wiring ,main				$ 369.76
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	3015722		Clip-wire Retainer		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	318052197		Harness,wiring ,halogen Lamp		Appelez-nous	-
NI	5304437044		Screw,10-32 X 1/4 ,black				$ 9.93
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
