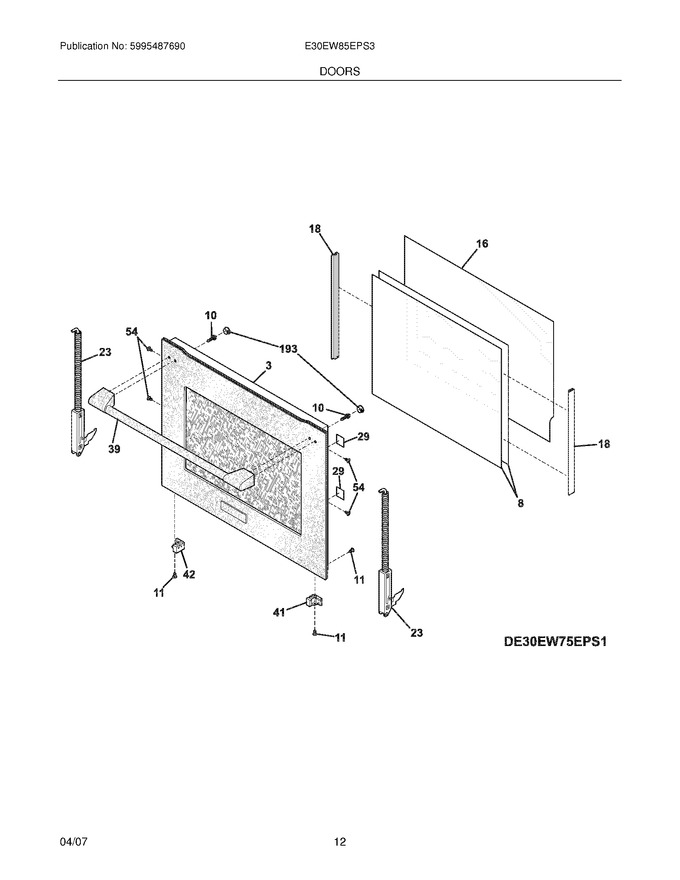

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	208568-9020		Exterior Door,assembly ,steel/glass ,stainless/black,upper ,w/frame		Appelez-nous	-
3	208568-9030		Exterior Door,assembly ,steel/glass ,stainless/black,lower ,w/frame & Tag		Appelez-nous	-
8	318238000		Glass,door ,middle ,(2)				$ 312.47
10	5304447555		Screw & Washer,6-32 X 3/4 ,(2)				$ 15.92
11	5303320422		Screw,6-20 X 5/16 ,black ,(6)				$ 12.71
16	318237902		Glass,oven Interior		Appelez-nous	-
18	318240900		Seal,middle Glass ,(2)				$ 50.66
23	318244304		Hinge Assy,(2)				$ 285.90
29	5304436441		Bumper,base ,(4)				$ 7.25
39	241637918		Handle Assembly,stainless ,w/endcaps		Appelez-nous	-
41	318238500		Bracket,glass Holder ,rh Bottom				$ 10.95
42	318238501		Bracket,glass Holder ,lh Bottom				$ 45.94
54	5304436875		Screw,8-18 X 1/2,black				$ 14.41
193	316210800		Plug,button				$ 10.63
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304437044		Screw,10-32 X 1/4 ,black ,(4)				$ 9.93
NI	5304447556		Washer,flat ,(2)		Appelez-nous	-
NI	5304443263		Screw,6-20 X 3/8 ,black				$ 10.92
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
