View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel

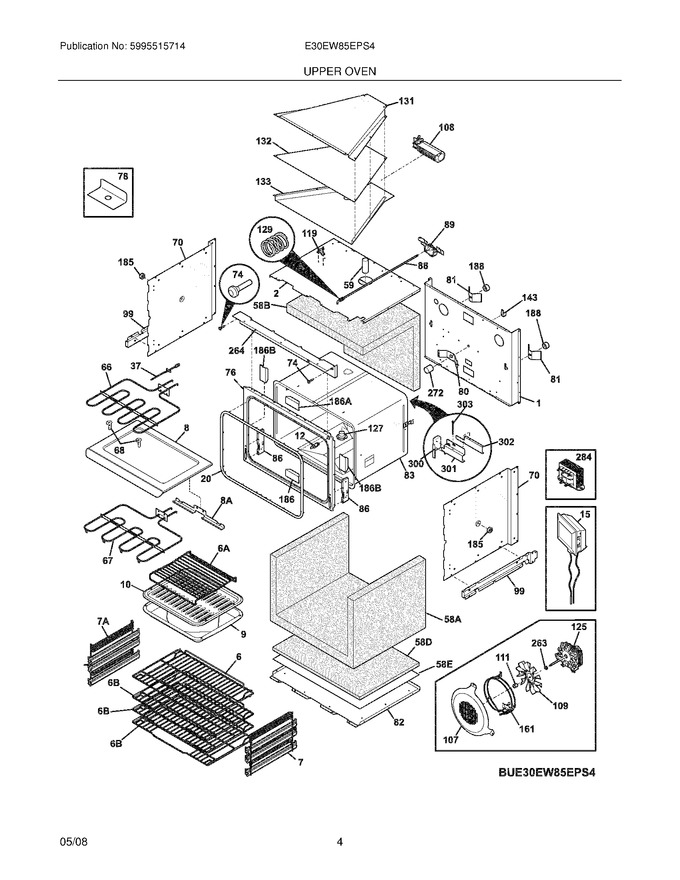

05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066413 | Panel,main Back |
|
- | |||||
| 2 | 318236400 | Shield,oven Top |
|
- | |||||
| 6 | 318345400 | Shelf,oven ,fixed |
|
$ 245.19 | |||||
| 7 | 318240006 | Glide & Support Assy,oven Shelves ,rh |
|
$ 244.00 | |||||
| 8 | 318262002 | Cover,element |
|
$ 253.07 | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 15 | 318241000 | Lamp,oven ,(2) ,halogen |
|
$ 160.23 | |||||
| 20 | 318239001 | Gasket,oven Door |
|
$ 112.41 | |||||
| 59 | 318072561 | Tube,vent ,oven |
|
- | |||||
| 68 | 5304403015 | Support,hanger ,(2) ,broil Element |
|
$ 35.04 | |||||
| 70 | 318236302 | Shield,insulation ,(2) |
|
- | |||||
| 74 | 318283600 | Bumper |
|
$ 36.65 | |||||
| 76 | 318056241 | Front,oven |
|
$ 166.53 | |||||
| 78 | 318243601 | Bracket,stopping |
|
$ 5.40 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318072311 | Shield,oven Bottom |
|
- | |||||
| 83 | 318236003 | Liner,oven Assy |
|
$ 379.89 | |||||
| 86 | 318241406 | Receptacle,hinge ,(2) |
|
$ 75.83 | |||||
| 88 | 318250202 | Rod,latch ,w/bushing |
|
- | |||||
| 89 | 318095950 | Motor,latch Assy ,w/brkt & Switch |
|
$ 199.29 | |||||
| 99 | 318278001 | Bracket,oven ,(2) |
|
- | |||||
| 107 | 318219406 | Cover,fan |
|
- | |||||
| 109 | 318398302 | Fan Blade (Replaces: 318398300) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut-fan Retainer (Replaces: 318399800) |
|
Immediately | $ 19.13 | ||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318237401 | Channel,air ,upper |
|
- | |||||
| 132 | 318237603 | Divider,air Channel |
|
- | |||||
| 133 | 318237503 | Channel,air ,lower (Replaces: 318237501) |
|
- | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(2) |
|
$ 12.76 | |||||
| 186 | 318236901 | Bracket,oven ,lower |
|
- | |||||
| 188 | 318531702 | Spacer,(2) |
|
$ 9.93 | |||||
| 188 | 131202300 | Screw,8 X 5/8 ,(6) (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| 263 | 318142100 | Washer,motor ,rh ,convection |
|
$ 12.39 | |||||
| 264 | 318278612 | Trim,vent |
|
- | |||||
| 272 | 318249400 | Tube,protector |
|
- | |||||
| 284 | 318302000 | Spacer,cork & Rubber ,(2) |
|
- | |||||
| 284 | 318244500 | Transformer |
|
$ 302.24 | |||||
| 300 | 318089801 | Switch,door,oven Light |
|
$ 77.03 | |||||
| 301 | 318234600 | Support,tongue Mtg |
|
$ 42.47 | |||||
| 302 | 318278200 | Tongue,door Switch ,w/plate |
|
$ 35.65 | |||||
| 303 | 318228400 | Pin,cotter |
|
- | |||||
| 58A | 318133788 | Insulation,oven Wrapper ,bottom/sides |
|
- | |||||
| 58B | 318285052 | Insulation,oven Wrapper ,top/rear |
|
- | |||||
| 58D | 318285054 | Insulation,1/2`` Thick ,26.75 X 19 |
|
- | |||||
| 58E | 318235701 | Panel,insulation ,26.75 X 18 ,aluminum |
|
- | |||||
| 6A | 318365800 | Rack,broiler Pan |
|
$ 52.46 | |||||
| 6B | 318345403 | Shelf,oven ,extendable ,(3) (Replaces: 318345402) |
|
- | |||||
| 7A | 318240007 | Glide & Support Assy,oven Shelves ,lh |
|
$ 337.21 | |||||
| 8A | 318318600 | Bracket,element ,hidden Bake |
|
$ 37.17 | |||||
| F108 | 318073019 | Motor,blower |
|
$ 518.13 | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F125 | 316136300 | Motor,fan |
|
$ 42.95 | |||||
| F125 | 5303316994 | Insulation,3.81 X 3.13 |
|
- | |||||
| F161 | 318255511 | Element,convection ,2500 W (Replaces: 318255506) |
|
Immediately | $ 110.20 | ||||
| F186A | 318237001 | Bracket,oven ,upper |
|
- | |||||
| F186B | 318237101 | Bracket,oven ,side ,(2) |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F66 | 318255807 | Element,broil ,4000w (Replaces: 318255800) |
|
$ 323.19 | |||||
| F67 | 318254906 | Element,bake ,3400w ,8 Pass |
|
Immediately | $ 259.36 | ||||
| NI | 318283500 | Bushing,oven Rack ,(8) |
|
$ 11.97 | |||||
| NI | 3015722 | Clip-wire Retainer |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 318120711 | Switch |
|
$ 87.68 | |||||
| NI | 318167300 | Clip,rod |
|
$ 2.84 | |||||
| NI | 5304437044 | Screw,10-32 X 1/4 ,black ,(4) |
|
$ 9.93 | |||||
| NI | 5304435874 | Plate,covering ,probe |
|
- | |||||
| NI | 318052197 | Harness,wiring ,halogen Lamp |
|
- |
