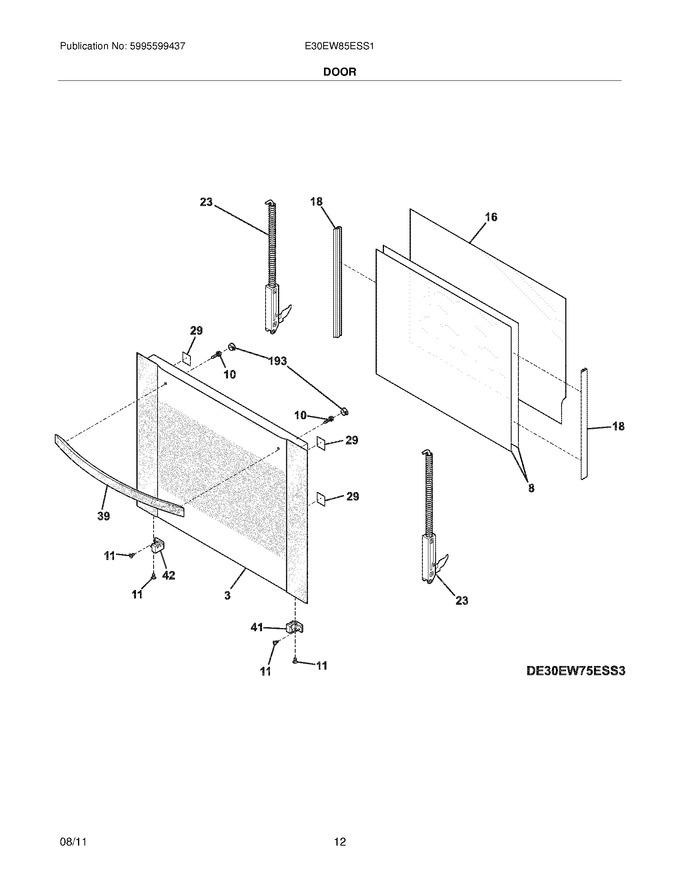

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304457998		Door Assembly,glass ,w/framing		Appelez-nous	-
8	318238000		Glass,door ,middle ,(2)				$ 312.47
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 5304436876)				$ 14.18
11	5303320422		Screw,6-20 X 5/16 ,black ,(6)				$ 12.71
16	318237900		Glass,oven Interior				$ 392.49
18	318240900		Seal,middle Glass ,(2)				$ 50.66
23	318244300		Hinge Assy				$ 224.86
29	5304436441		Bumper,base ,(4)				$ 7.25
39	318238902		Handle,oven Door ,stainless		Appelez-nous	-
41	318238500		Bracket,glass Holder ,rh Bottom				$ 10.95
42	318238501		Bracket,glass Holder ,lh Bottom				$ 45.94
193	316210800		Plug,button				$ 10.63
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304437044		Screw,10-32 X 1/4 ,black ,(4)				$ 9.93
