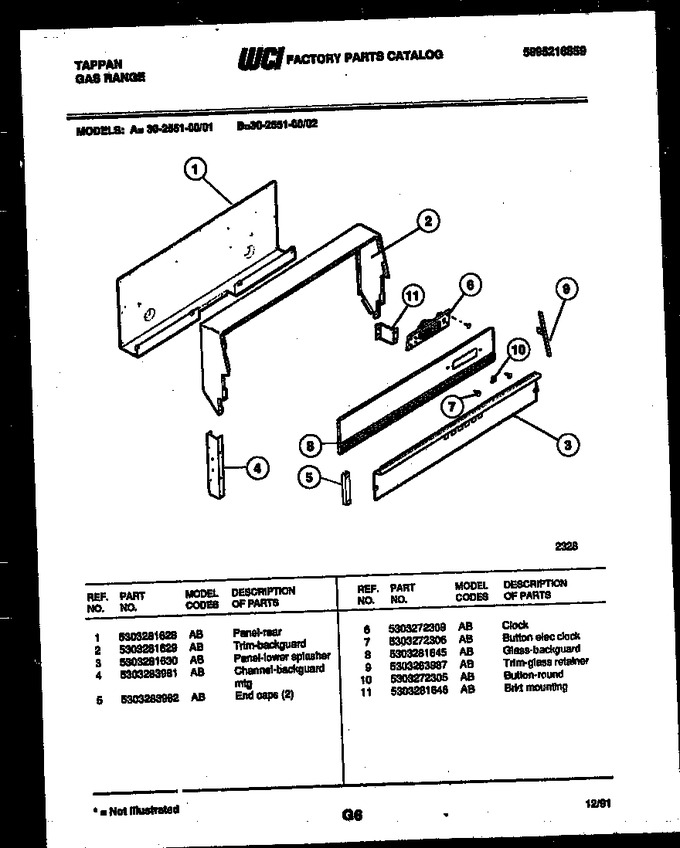

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303281628 | Panel-rear |
|
- | |||||
| 2 | 5303281629 | Trim-backguard |
|
- | |||||
| 3 | 5303281630 | Panel-lower Splasher |
|
- | |||||
| 4 | 5303283981 | Channel-backguard Mtg |
|
- | |||||
| 5 | 5303283982 | End Caps (2) |
|
- | |||||
| 6 | 5303272309 | Clock |
|
- | |||||
| 7 | 5303272306 | Button Elec Clock |
|
- | |||||
| 8 | 5303281645 | Glass-backguard |
|
- | |||||
| 9 | 5303283987 | Trim-glass Retainer |
|
- | |||||
| 10 | 5303272305 | Button-round |
|
$ 38.80 | |||||
| 11 | 5303281646 | Brkt Mounting |
|
- |
