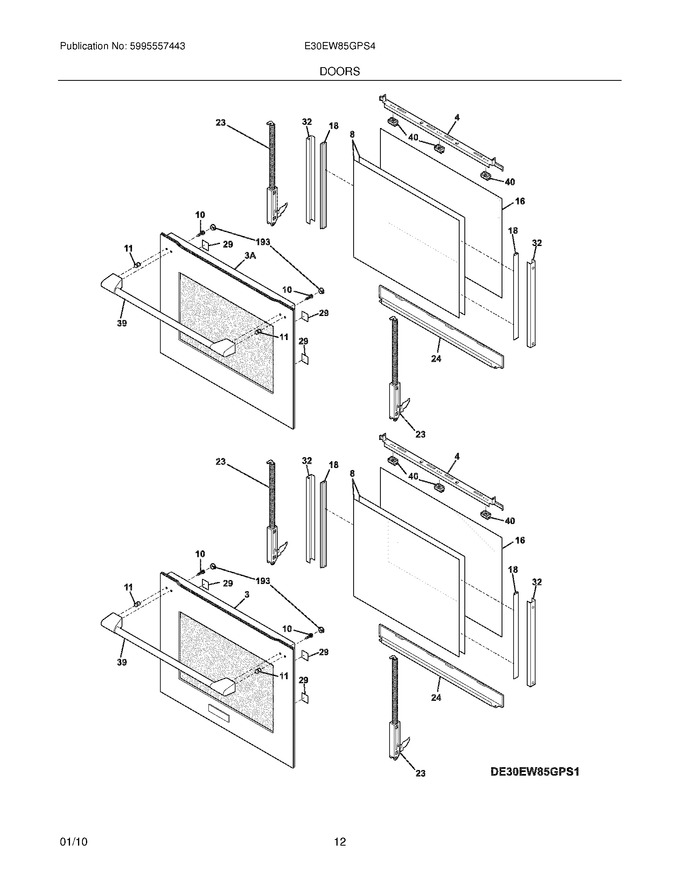

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318235903		Door Front Assembly,w/glass ,stainless ,w/frame & Badge		Appelez-nous	-
4	318238314		Holder,glass ,top				$ 186.06
8	318238020		Glass,door ,middle ,(2)				$ 208.16
10	5304447555		Screw & Washer,6-32 X 3/4 ,(2)				$ 15.92
11	318303500		Nut,insert ,6-32 ,(4)				$ 22.21
16	318237926		Glass,oven Interior				$ 723.58
18	318377501		Seal,middle Glass ,(2)				$ 98.91
23	318244305		Hinge Assy,(2)				$ 162.59
24	318390401		Trim,door ,black ,lower				$ 203.60
29	5304436441		Bumper,base ,(4)				$ 7.25
32	318382601		Deflector,middle Glass ,(2)				$ 54.02
39	318392422		Handle,door		Appelez-nous	-
40	318377400		Bracket,glass Holder				$ 48.53
193	316210800		Plug,button				$ 10.63
3A	318235911		Door Front Assembly,w/glass ,stainless ,upper Oven,w/frame				$ 803.93
NI	5304443263		Screw,6-20 X 3/8 ,black				$ 10.92
NI	5304437044		Screw,10-32 X 1/4 ,black ,(4)				$ 9.93
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41

    View Diagram in Separate Window       Print Part List
