SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard/induction Unit


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram

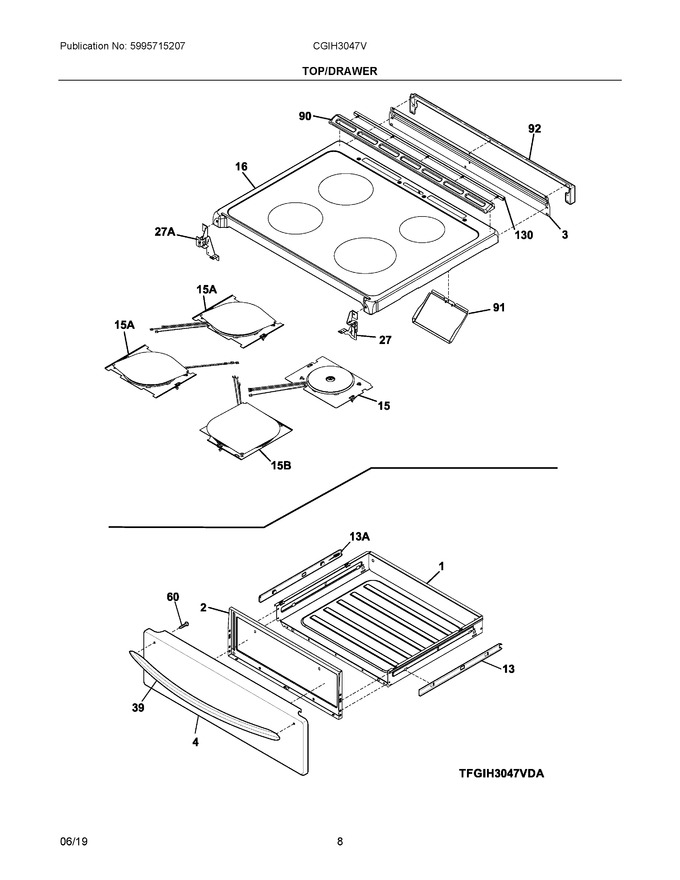

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Warmer				$ 125.44
2	5304527988		Liner, Black, Drawer   (Replaces: 316403203)			Immediately	$ 26.54
3	5304514133		Shield, Rear Wall, Upper				$ 34.89
4	5304517133		Panel, Drawer, Black Stainless				$ 193.99
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
15	387404760		Element Assembly, Induction Coil, 140mm, Rh Rear   (Replaces: 387404759)			Immediately	$ 86.82
16	5304519397		Smoothtop, Assembly, Glass/steel, Black			Immediately	$ 597.96
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 13.65
39	5304518030		Handle, Door/drawer, Black Stainless				$ 157.60
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	5304514157		Trim, Vent, Black, Rear				$ 61.43
91	5304514354		Deflector, Moisture, (2)		Appelez-nous	-
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 163.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 40.19
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
15A	387404870		Element Assembly, Induction Coil, 180mm, Lh Rear/front   (Replaces: 387404866)			Immediately	$ 84.96
15B	387761249		Element Assembly, Induction Coil, 210mm, Rh Front   (Replaces: 387761248)			Immediately	$ 106.18
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 13.65
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304517540		Harness, Wiring, Surface				$ 62.34
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
