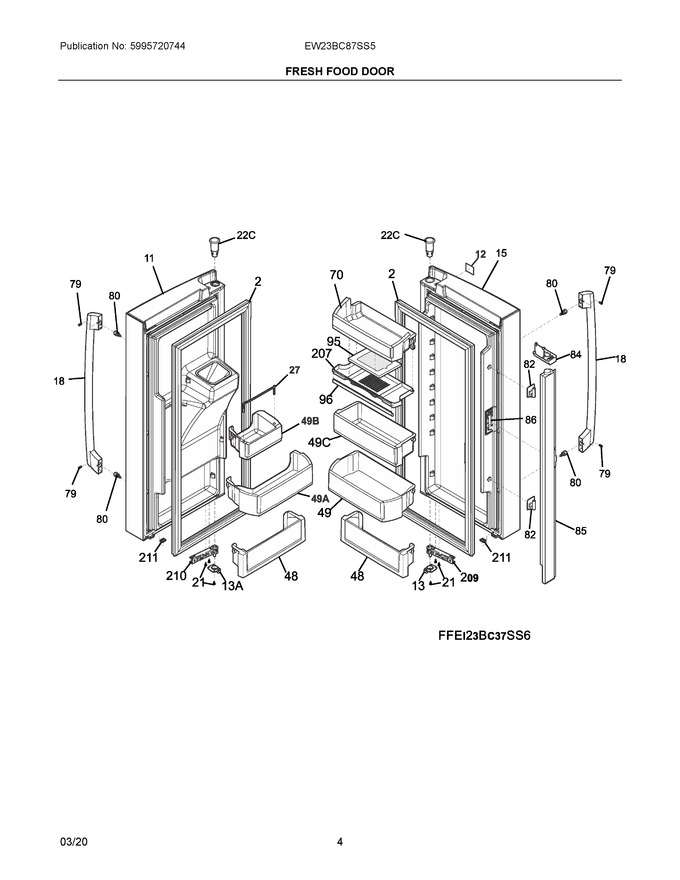

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Gray, Magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| 11 | 242185663 | Door-refr, Stainless, W/disp |
|
$ 614.23 | |||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 242185662 | Door-refr, Stainless, Rh |
|
$ 493.43 | |||||
| 18 | 241881309 | Handle-door, Stainless |
|
$ 256.62 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 27 | 241752703 | Retainer, Tall Bottle |
|
$ 55.36 | |||||
| 48 | 241804303 | Bin-door, Can |
|
$ 93.38 | |||||
| 49 | 241804006 | Bin-door, Gallon |
|
$ 110.61 | |||||
| 70 | 242131801 | Bin-door, 1/2 Gallon |
|
$ 87.02 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 36.41 | ||||
| 85 | 242036309 | Flipper Mullion Assembly, Black, W/heater (Replaces: 242036306) |
|
Immediately | $ 188.25 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper |
|
Immediately | $ 36.73 | ||||
| 95 | EAFCBF | Filter, Air (Replaces: 242047804) |
|
Immediately | $ 27.64 | ||||
| 96 | 242048001 | Trim-door Air Filter, W/graphics |
|
$ 43.99 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 80.39 | |||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| 49A | 241896003 | Bin-door, 2-liter |
|
$ 112.04 | |||||
| 49B | 241895902 | Bin-door, Dispenser |
|
$ 68.57 | |||||
| 49BA | 241906302 | Bin-door, Dispenser |
|
$ 44.65 | |||||
| 49C | 241896103 | Bin-door, 1/2 Gallon |
|
$ 97.67 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 242040805 | Harness-wiring, Door, Hinge To Disp. |
|
- | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| NIB | 242068601 | Bumper, Flipper Mullion |
|
$ 14.41 | |||||
| NIC | 5304520993 | Harness-mullion, Flipper |
|
Immediately | $ 41.97 |
