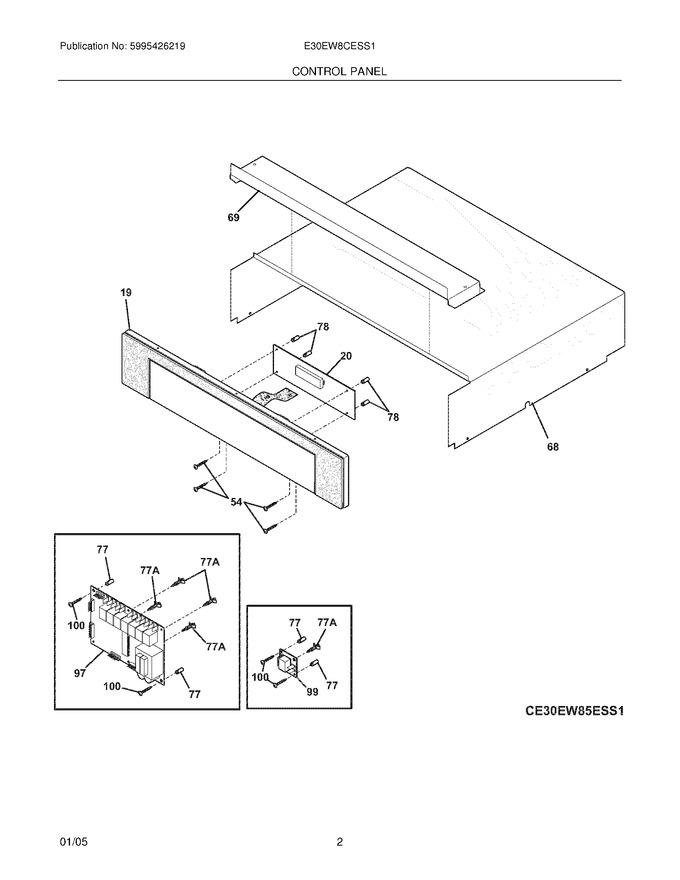

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318244813		Control Panel,assembly ,w/stainless Trm		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
68	318237200		Housing,top/control		Appelez-nous	-
69	318237310		Shield,control		Appelez-nous	-
77	316247900		Spacer,power Board ,(4)				$ 44.65
78	318293700		Spacer,control Panel ,(4)		Appelez-nous	-
99	316435700		Board,power Supply				$ 109.04
100	5303297477		Screw,6-20 X 1 1/4				$ 15.17
77A	316114100		Spacer,(6)				$ 60.96
F20	316434700		Oven Control,electronic ,es600				$ 654.94
F97	316434800		Relay Board				$ 546.21
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318231729		Harness,switch Input				$ 95.71
NI	318231730		Harness,probe		Appelez-nous	-
NI	318231731		Harness,communication				$ 52.97
